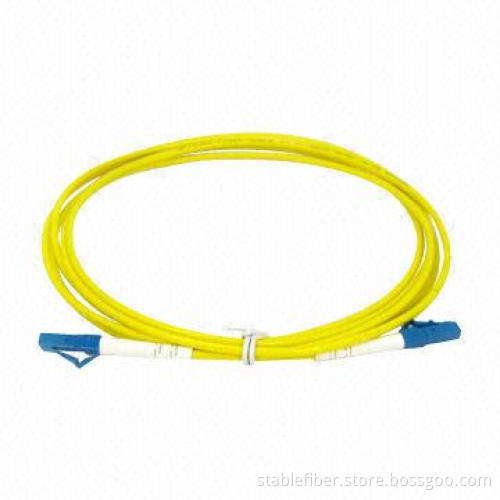

Fiber optic transmission system, used on patch panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Used on patch panel or for the connection between outlets and terminal equipment

Stable offer customized products with cables PVC, LSZH, OFNP jacket in your required colors and length

Fiber has G652D, G655,G657A, OM2, OM3, OM4, single fiber, zip cord fiber, bundle type and ribbon type for choice

Quality of connectors and fibers are mainly determined by the insertion loss and return loss

Applications:

SM and MM are available

With standard and custom configurations

Meets Telecordia-GR-326-Core specifications

Low insertion loss

Ultra low back reflection

For 3.0, 2.4, and 2.0mm jacket or 900¼m buffer

Technical data:

Fiber type: SM and MM
Normal fiber: OD 125 ±0.2um
Connector types: SC, FC, ST, E-2000, LC, MU, MTRJ,. SC, FC,ST, E-2000, LC, MU and MTRJ
Insertion loss (typical): 0.2/0.4dB
Insertion loss (maximum): 0.3/0.5dB

Return loss (typical):

Mating durability (500C): 0.2dB

Temperature stability: 0.3dB

Operating temperature: -40 to 85°C

Storage temperature: -40 to 85°C

High-bit rate data transmission

Telecommunications

Testing instruments

Active device terminations

LAN/WAN

FTTX

Fiber type: SM and MM

Normal fiber: OD 125 ±0.2um

Connector types: SC, FC, ST, E-2000, LC, MU, MTRJ,. SC, FC,ST, E-2000, LC, MU and MTRJ

Insertion loss (typical): 0.2/0.4dB

Insertion loss (maximum): 0.3/0.5dB

PC: 50dB, 35

UPC: 55dB

APC: 65dB
