Crystal Oscillators with 12.800000MHz Frequency and 2.8V DC Supply Voltage

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

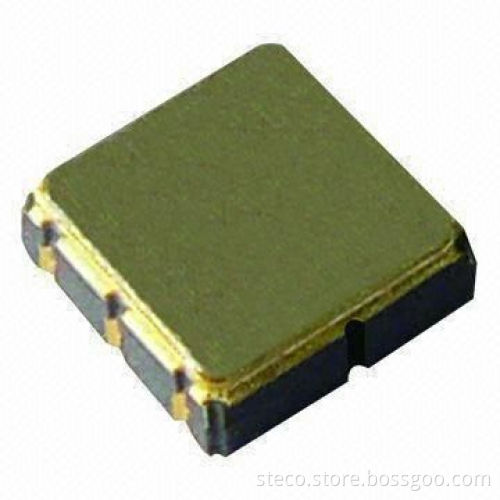

Descriptions: a surface mountable, digitally temperature compensated crystal oscillator for 3V operation

The sub-miniature size extremely low profile and low power consumption of this VCTCXO makes it ideally suited for portable ,wireless applications such as cellular telephones and networking

Applications: cellular phone, CDMA, GSM, GPS, SONET and microprocessor

The hermetically sealed ceramic package is fully compatible with standard surface mounting processes

Lead-free is available

Frequency(Fo) ref: 25 deg. C: 12.800000MHz

Frequency stability:

Vs. temperature range: -2.0 +2.0ppm

Vs. supply voltage (±5%): 0.3 +0.3ppm

Vs. load (±5%): 0.3 +0.3ppm

Vs. aging (at 25 deg. C): 1.0 +1.0ppm/year

Frequency tolerance at 25 deg. C: -1.5 to 1.5ppm

Operating temperature range: -30 to 85 deg. C

Storage temperature range: -40 to 90 deg. C
