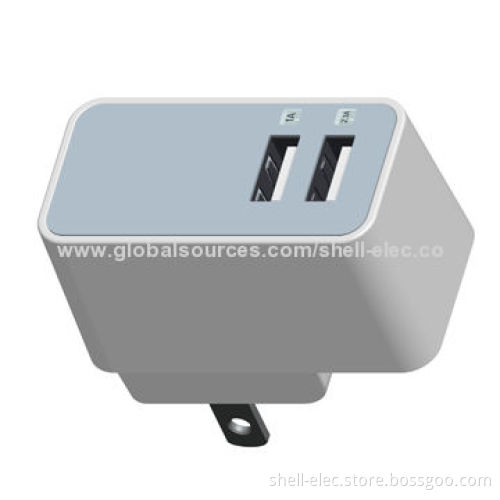

UL Charger for samrtphones, 5V/2.1A or 2.4A Output, with Smart IC, All in One Charging Solution

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T)

Product Description

Specifications:

Input voltage: 110 to 240V AC
Input current: 0.3A (maximum)
Input frequency: 50/60Hz
Output voltage: 5V
Output current: 2.1A or 2.4A
No-load power consumption: 0.03W (maximum)
Efficiency: 60% (minimum)
Ripple and noise: 100 to 200mV
Counter current: 5mA (maximum)
Line regulation: ±1%
Load regulation: ±5%
Switching adapter, fixed frequency control circuit, apply to mobile phones, PDAs, digital cameras, tax-control POS, routers and more
Meets all related safety standards
Output protections:
- Short-circuit protection
- Over-voltage protection
- Over-current protection
Reliability:
- Insulation resistance: 7MΩ (minimum)
- Leakage current: 0.25mA (maximum)
Operating temperature: -5 to 45°C
Storage temperature: -20 to 85°C
Storage humidity: 5 to 95% RH
Burn-in test: 80 to 100% load, 40 ±5, four hours
Operating indication: single-color or dual-color
Certificates: UL, CB, CE, EMC/LVD, EUP and RoHS
Size: 55x 29 x 39mm
Weight: 45g
Packing: polybag, blister card and color box
