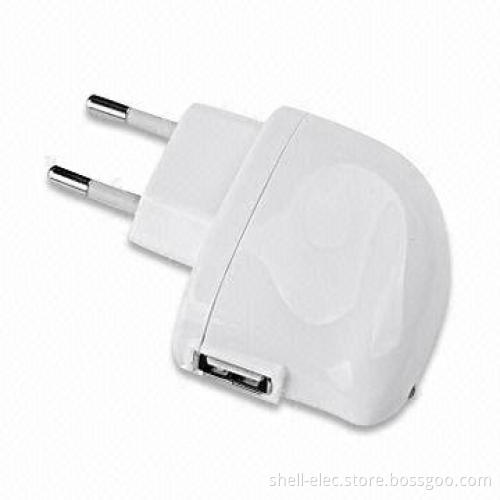

Universal USB Travel Charger for Mobile/GPS/PDA/PSP and More, with 240V AC Voltage 2.1A Output

Get Latest Price

Payment Type:: T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T)

Product Description

Input voltages: 100 to 240V AC

Input current: 0.15A (maximum)

Input frequency: 50/60Hz

Output voltage: 3.3 to 9.0V or 5V DC

Output current: 1,000mA or 2.1A

No-load power consumption: 0.03W (maximum)

Efficiency: 60% (minimum)

Ripple and noise: 100 to 200mV

Counter current: 5mA (maximum)

Line regulation: ±1%

Load regulation: ±5%

Switching adapter, fixed frequency control circuit, apply to mobile phones, PDAs, digital cameras, tax-control POS, routers andmore

Meets all related safety standards

Output protections:

Short-circuit protection
Over-voltage protection
Over-current protection

Reliability:

Insulation resistance: 7mΩ (minimum)
Leakage current: 0.25mA (maximum)
Operating temperatures: -5 to 45°C
Storage temperatures: -20 to 85°C
Storage humidity: 5 to 95% RH

Burn-in test: 80 to 100% load, 40 ±5, four hours

Operating indication: single-color or dual-color

CB, CE-EMC/LVD and EUP marks

RoHS Directive-compliant

Dimensions: 56 x 33 x 80mm

Weight: 65g

Packaging: polybag, blister card or color box

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Short-circuit protection

Over-voltage protection

Over-current protection

Insulation resistance: 7mΩ (minimum)

Leakage current: 0.25mA (maximum)

Operating temperatures: -5 to 45°C

Storage temperatures: -20 to 85°C

Storage humidity: 5 to 95% RH
