Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

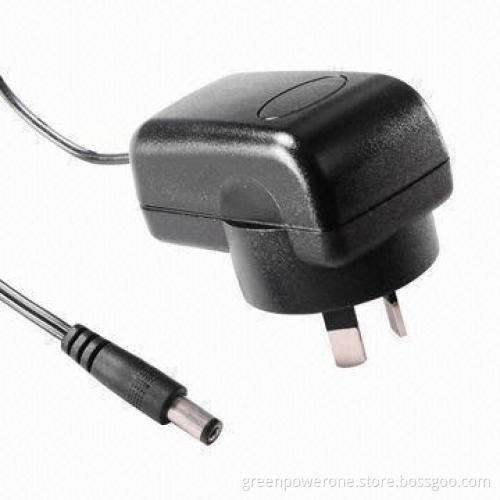

5V 2A switching power adapter with SAA plug

Certificates: UL, cUL, FCC, CCC, PSE, SAA, CE, TÜV-GS andBS

Meet efficiency level: V

Output:

Voltages: 3 to 36V DC

Rated current: 0.1-1.5 Amps

Maximum power: 9.6W

Ripple (maximum): 1% type voltage

Voltage tolerance: 5%

Input:

Voltage range: 90 to 264V AC

Frequency range: 47 to 63Hz

AC current: 0.3A/115V AC, 0.21A/230V AC

Leakage current (maximum): cold start, 30A/115V AC, 50A/230VAC

Leakage current (maximum): 0.25mA/240V AC

Protection:

Overload: more then 105%, rated output power (protection type:Hiccup mode, recovers automatically after fault condition isremoved)

Over-voltage: 120 to 160% (protection type: clamp by internalcircuit)

Over-temperature: 140°C typically (protection type:shutdown O/P voltage, recovers automatically after temperature goesdown)

Environment:

Working temperatures: 0 to 45°C

Working humidity: 20 to 90% RH non-condensing

Storage temperatures, humidity: -20 to 85°C, 10 to 95%RH

Temperature coefficient: 0.03% °C (0--45°C)
