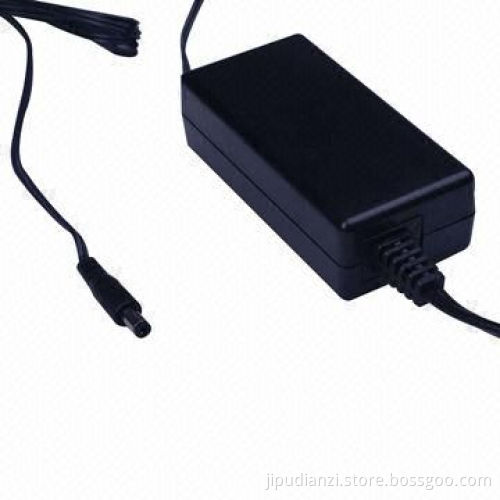

Switching power supplier for laptop AC adapter, input voltage range of 100 to 240V
  • Switching power supplier for laptop AC adapter, input voltage range of 100 to 240V
Switching power supplier for laptop AC adapter, input voltage range of 100 to 240V

Switching power supplier for laptop AC adapter, input voltage range of 100 to 240V

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Applicable to mobile phone, IT, T-LINK, ADSL and smart home appliance
    • Meets all related safety standard
    • Ultra low no-load/standby power consumption (30mW maximum)
    • Electrical characteristics:
    • Output voltage range: 5 to 24V
    • Current range: 0.5 to 2A
    • Ripple and noise: 100 to 200mV (maximum)
    • Voltage range: ±5%
    • Input voltage range: 100 to 240V (90 to 264V)
    • Frequency range: 50 to 60Hz (47 to 63Hz)
    • Efficiency (type): 69.53% (minimum)
  • Protections:
    • Over-current
    • Short-circuit
    • Over-temperature
    • Over-voltage
  • Safety and burn-in safety standards:
    • GB 4943/EN 60950-1/UL 60950
    • Burn-in 80 to 100% load, 40 ±5°C, 4 hours
    • Life average/expectancy: 3 years
    • EMI conductor and radiation: GB 9254-1998, EN 55022, EN 55024 and FCC
  • Applicable to mobile phone, IT, T-LINK, ADSL and smart home appliance
  • Meets all related safety standard
  • Ultra low no-load/standby power consumption (30mW maximum)
  • Electrical characteristics:
  • Output voltage range: 5 to 24V
  • Current range: 0.5 to 2A
  • Ripple and noise: 100 to 200mV (maximum)
  • Voltage range: ±5%
  • Input voltage range: 100 to 240V (90 to 264V)
  • Frequency range: 50 to 60Hz (47 to 63Hz)
  • Efficiency (type): 69.53% (minimum)
  • Over-current
  • Short-circuit
  • Over-temperature
  • Over-voltage
  • GB 4943/EN 60950-1/UL 60950
  • Burn-in 80 to 100% load, 40 ±5°C, 4 hours
  • Life average/expectancy: 3 years
  • EMI conductor and radiation: GB 9254-1998, EN 55022, EN 55024 and FCC
