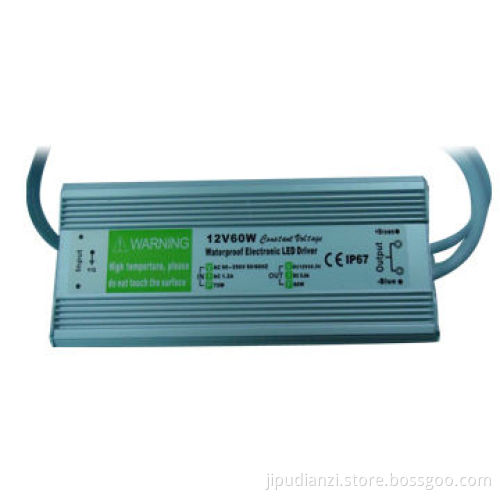

High power 5A/60W/220/12V power supply

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Features:

Low price and high reliability
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size, lightweight
Over 100% full-load burn-in test

Specifications:

Input specification
Input voltage
AC 85-264V

Input frequency range:

50-60Hz

Input impulse current:

30A/115V 60A/230V

Input current:

P<=100W: 2A/115V 1A/230V
101W - 200W: 3A/115V 1.5A/230V
201W - 400W: 5A/115 2.5A/230V

Output specification:

Output voltage: 12V DC

Voltage regulation: (full load) 5%

Output voltage can be adjusted: ±10%

Wave and noise:

120mVp-p

Efficiency: 85%

Output current: 8.5A

Output power: 100W

Protection function:

Over-voltage protection range: 105 - 150% of the rated voltage
Over-current protection: 105 - 150%
Under-voltage protection: under 80%
Protection level (waterproof level): 20
Rainproof level: 60

Insulation intensity:

Input-output: 2,000V AC/min

Input-ground: 1,500V AC/min

Output-ground: 500V AC/min

Isolation resistance

Input-output: 500V DC-100mΩ

Environmental:

Temperature coefficient, 0.01% (0-50°C)

Humidity coefficient: 0.01% /(20% - 90% RH)

Working temperature and humidity: –20°C-60°C/20%-90%RH

Storage temperature and humidity: –40°C-85°C/10%-95%RH

Height above sea level: leq2000m

Without fan: natural cooling air convection

Vibration::10-500Hz, 2G 10min./1 cycle, period for 60min, each axes

Safety standards: according with GB4943, UL60950-1, EN60950-1 standards

EMC standards

According with GB9254, EN55022 class A EN61347-2-13:2008 standards

Size: 160(L)*100(W)*42(H)mm

Weight: 370g/pc

Package: 50pcs/A box

Packaging and delivery:

Packaging detail: 50pcs/carton, carton box
Delivery lead time: 5 days for 1000pcs

Why choose us:

More than 80 sets of advanced connectors and assembly cables machines and testing equipment
Large production capacity, short delivery time
Strict QC checking before delivery
OEM/ODM service available, help you on designing
7*24 hours online services

Low price and high reliability

AC input power suitable for the world

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

With short-circuit and overload protection

Compact size, lightweight

Over 100% full-load burn-in test

Input specification

Input voltage

AC 85-264V

50-60Hz

30A/115V 60A/230V

P<=100W: 2A/115V 1A/230V

101W - 200W: 3A/115V 1.5A/230V

201W - 400W: 5A/115 2.5A/230V

Output voltage: 12V DC

120mVp-p

Over-voltage protection range: 105 - 150% of the rated voltage

Over-current protection: 105 - 150%

Under-voltage protection: under 80%

Protection level (waterproof level): 20

Rainproof level: 60

Input-output: 2,000V AC/min

Temperature coefficient, 0.01% (0-50°C)

According with GB9254, EN55022 class A EN61347-2-13:2008 standards

Packaging detail: 50pcs/carton, carton box

Delivery lead time: 5 days for 1000pcs

More than 80 sets of advanced connectors and assembly cables machines and testing equipment

Large production capacity, short delivery time

Strict QC checking before delivery

OEM/ODM service available, help you on designing

7*24 hours online services
