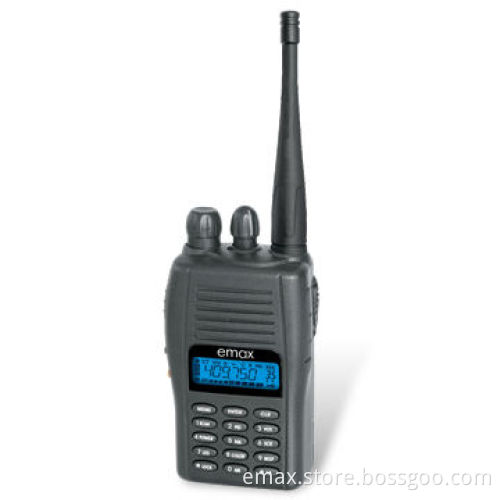

Handheld Two-way Radio with 128 Memory Channels and Built-in VOX

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Output power: VHF 5W/UHF 4W
128 memory channels
Built-in 50 CTCSS and 104 DCS
Channel spacing:
- Wide: 25kHz
- Narrow: 12.5kHz
Programmable in separate channels
With 1,200mAh Li-ion battery
Input frequency directly by keypad
Built-in VOX
Frequency and CTCSS scan
Three different scan type: TO, CO and SE
Three color LCD backlight display
Sound alarm
Programmable by PC software
Bell ring when receiving signal
Priority scan function
Adjust power high/low
Switching between channel/VFO
Display channel and frequency mode
Adjust squelch level (0 to 9)
Busy channel lockout
Keypad lock
Reverse frequency function
Channel step: 5, 10, 6.25, 12.5 and 25K
Optional frequency range: 136 to 174MHz, 400 to 470MHz, 240 to 260MHz and 465 to 520MHz
Program alphanumeric channels name
DTMF encode
Self-program
VFO/MR key to store and delete channel
SAA approved

Technical specification:

Frequency range:
- 136 to 174MHz
- 245 to 246MHz
- 400 to 470MHz
- 470 to 512MHZ
Antenna impedance: 50Ω
Working temperatures: -20 to +50°C
Operating voltage: 7.2V DC
Operate mode: simplex or semi-duplex
Dimensions: 100 x 55 x 32mm (not included antenna)
Weight: 220g (including battery)

Transmitter:

Frequency stability: ±2.5ppm
Output power: 5W
Max frequency deviation: 5kHz
Audio distortion: 3%
Modulation character: +3 to -3dB
Adjacent channel power: ≥65dB
Spurious radiation: ≤7.5UW
Occupied bandwidth: ≤16kHz

Receiver:

RF sensitivity: < 0.2UV
Audio distortion: 3%
Audio response: +2 to -10dB
Adjacent channel selectivity: ≥60dB
Inter-modulation rejection: ≥65dB
Spurious response: ≥70dB
Blocking: ≥80dB

Accessories:

Rechargeable battery
Standard charger
Antenna
Belt clip
User manual

Optional accessories:

Remote speaker
Earphone
Car charger

Output power: VHF 5W/UHF 4W

128 memory channels

Built-in 50 CTCSS and 104 DCS

Channel spacing:

Wide: 25kHz
Narrow: 12.5kHz

Programmable in separate channels

With 1,200mAh Li-ion battery

Input frequency directly by keypad

Built-in VOX

Frequency and CTCSS scan

Three different scan type: TO, CO and SE

Three color LCD backlight display

Sound alarm

Programmable by PC software

Bell ring when receiving signal

Priority scan function

Adjust power high/low

Switching between channel/VFO

Display channel and frequency mode

Adjust squelch level (0 to 9)

Busy channel lockout

Keypad lock

Reverse frequency function

Channel step: 5, 10, 6.25, 12.5 and 25K

Optional frequency range: 136 to 174MHz, 400 to 470MHz, 240 to 260MHz and 465 to 520MHz

Program alphanumeric channels name

DTMF encode

Self-program

VFO/MR key to store and delete channel

SAA approved

Wide: 25kHz

Narrow: 12.5kHz

Frequency range:

136 to 174MHz
245 to 246MHz
400 to 470MHz
470 to 512MHZ

Antenna impedance: 50Ω

Working temperatures: -20 to +50°C

Operating voltage: 7.2V DC

Operate mode: simplex or semi-duplex

Dimensions: 100 x 55 x 32mm (not included antenna)

Weight: 220g (including battery)

136 to 174MHz

245 to 246MHz

400 to 470MHz

470 to 512MHZ

Frequency stability: ±2.5ppm

Output power: 5W

Max frequency deviation: 5kHz

Audio distortion: 3%

Modulation character: +3 to -3dB

Adjacent channel power: ≥65dB

Spurious radiation: ≤7.5UW

Occupied bandwidth: ≤16kHz

RF sensitivity: < 0.2UV

Audio distortion: 3%

Audio response: +2 to -10dB

Adjacent channel selectivity: ≥60dB

Inter-modulation rejection: ≥65dB

Spurious response: ≥70dB

Blocking: ≥80dB

Rechargeable battery

Standard charger

Antenna

Belt clip

User manual

Remote speaker

Earphone

Car charger
