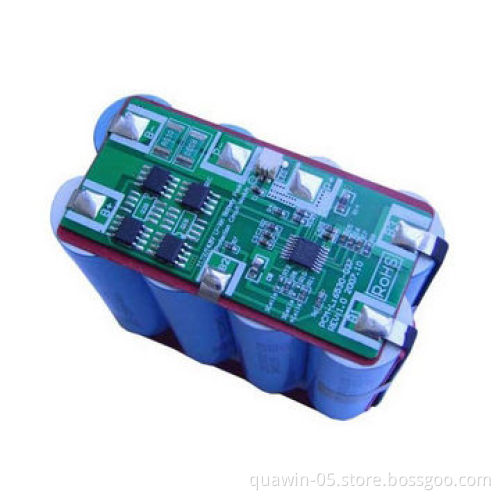

Good-quality, 4s/14.8V, BMS/PCM Li-ion Battery Pack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

PCM-Li6530-037

Voltage charging voltage DC: 16.8V CC/CV

Balance voltage for single cell

Current balance current for single cell

Current consumption for single cell: d50¼A

Maximal continuous discharging current: 10A

Overcharge protection:

Over-current protection:

Short-circuit protection:

Over charge detection voltage: 4.35±0.025V

Over charge detection delay time: 0.5S to 1.5S

Over charge release voltage: 4.15±0.05V

Over-discharge protection:

Over discharge detection voltage: 2.40±0.08V

Over discharge detection delay time: 50 to 150ms

Over discharge release voltage: 3.0±0.1V

Over-current detection voltage: 150±25mv

Over-current detection current: 30±5A

Detection delay time: 5 to 15ms

Release condition: automatic recovery

Detection condition: exterior short circuit

Detection delay time: 200 to 500us

Release condition: automatic recovery

Resistance protection circuitry: d50m

Operating temperature range: -40 to +85°C

Storage temperature range: -40 to +125°C
