6S LiPo LiFepo4 Battery BMS PCM

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

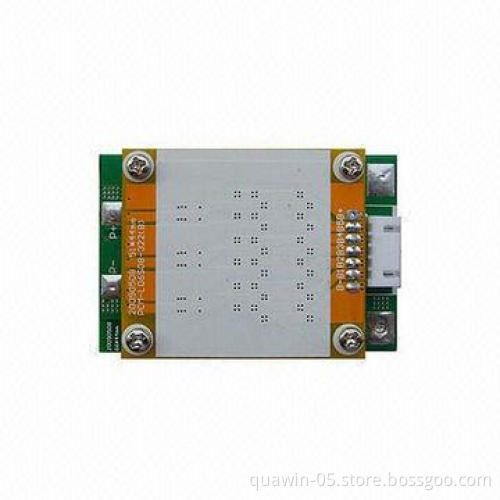

Model: PCM-L06S08-322 (6S)

Voltage charging voltage: DC:21.6V, 3.6V/cell

Balance voltage for single cell: 3.60, ±0.025V

Current balance current for single cell: 72, ±5mA

Low current consumption for single cell: d20¼A

Maximal continuous charging current: 8A

Maximal continuous discharging current: 8A

Over-charge protection:

Over charge detection voltage: 3.90, ±0.025V

Over charge detection delay time: 0.96S-1.4S

Over charge release voltage: 3.80±0.05V

Over discharge protection:

Over discharge detection voltage: 2.00, ±0.05V

Over discharge detection delay time: 115-173ms

Over discharge release voltage: 2.3, ±0.05V

Over current protection:

Over current detection voltage: 0.62V

Over current detection current: 50, ±10A

Detection delay time: 7.2ms-11ms

Release condition cut load

Short protection detection:

Condition exterior short circuit

Detection delay time: 200-500us

Release condition cut load

Temperature range: -40-+85°C

Storage temperature range: -40-+125°C
