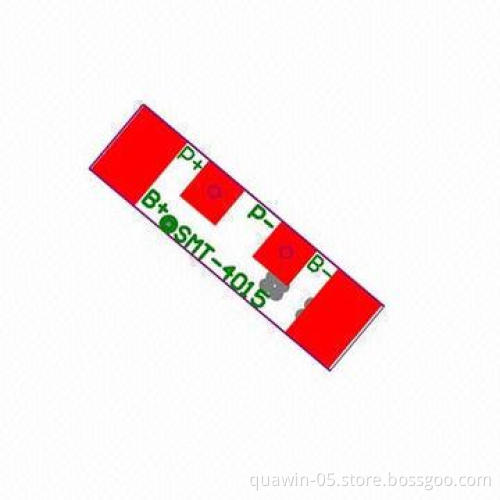

Protection Circuit Module for 1s Li-ion/LiFePo4 Battery Pack at 20A BMS

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximal continuous charging and discharging current: 2.5A

Voltage charging voltage CC/CV: Li-ion/Li-polymer (4.2V/cell)and LiFePO4 (3.6V/cell)

Balance voltage for single cell

Current balance current for single cell

Current consumption: ≤10μA

Maximal continuous charging and discharging current: 2.5A

Over-charge protection:

Over-discharge protection:

Over-current protection:

Release condition cut load:

Size: (L)15x(W)4x(T)2.5mm

Over-charge detection voltage: 3.8 to 4.4V (can adjust)

Over-charge detection delay time: 0.5 to 2.5S

Over-charge release voltage: 3.8 to 4.4V (can adjust)

Over-discharge detection voltage: 1.9~3.1V (can adjust)

Over-discharge detection delay time: 50 to 300ms

Over-discharge release voltage: 1.9 to 3.1V (can adjust)

Over-current detection voltage: 0.06 to 0.6V

Over-current detection current: 1 to 5A

Detection delay time: 1 to 50ms

Short protection detection condition exteriorshort-circuit

Detection delay time: 200 to 500μs

Resistance protection circuitry (B- to P-): ≤60mΩ

Temperature operating temperature range: -40 to +85°C

Storage temperature range: -40 to +125°C
