Product Description

Integrating battery charger, DC-AC converter and DC-DC into one module

Open Frame aa It is easy to built in with various batte

Product description

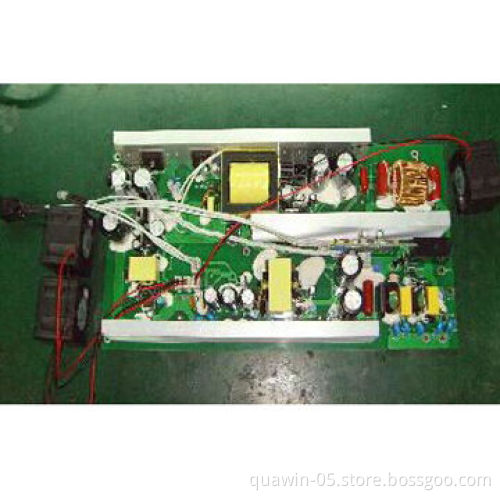

An open frame uninterrupted power supply(UPS) system with AC/DC output. The open frame make DIY easier

Features :

Open frame -it is easy to built in with various battery pack from 45VDC-55VDC
The off-line structure prolongs the machine ‘s life
The design is base on the requirement of 1U ,It is easy to assemble
Smart switch or manual switch between the AC supply mode and inverter mode (inverter mode)
Integrating battery charger, DC-AC converter and DC-DC into one module
Over current protection
Over voltage protection
Over temperature protection
Smart indicator
10CFM cooling fan

Technical specification:

AC-AC
- Rated input voltage: >110V AC ,5.0A Max
- Max Input current: 2A (110V AC)
- Output ripple: ≤0.5%
- Output voltage: 110V AC Sine-Wave
- Max output power for AC-DC unit: 160W Max
- PF :≥0.9
AC-DC
- Output voltage :58.4V (58.88V for SLA ,54.6v for Li-ion
- Max output current: 3A
DC-AC (inverter)
- Battery voltage: 58.4 (58.88V for SLA, 54.6V for Li-ion)
- Rated output voltage: 110V AC Sine-Wave
- Max output current: 1.8A
- Max output power: 400W
- Efficiency: ≥85%
