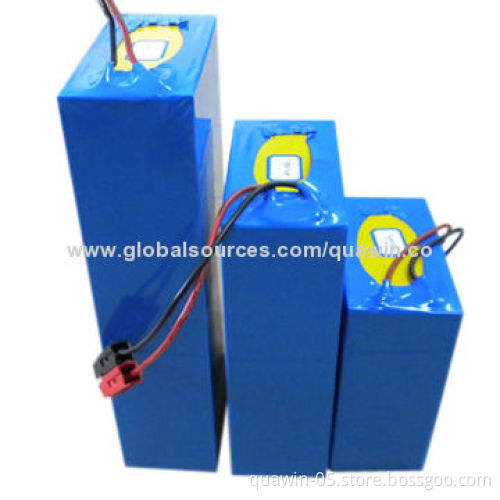

48V/30Ah Lithium-ion Battery, Case Made of Steel

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Standard datasheet (detailed specification according to design):

Standard capacity (0.2C): 30AH
Rated voltage: 48V
Standard charge/discharge current: 6A/30A, 0.2C/1C
Maximum continuous discharge current: 75A, 2.5C
Peak discharge current: 150A, 5C
Battery dimensions: customized
Weight (approximately including case): as light as possible
Model: IFR 32650
Case material: steel for single cells
Maximum charge voltage: 58.4V
Cut-off voltage: 40V

Operating temperature:

Charge: 0 to 45°C
Discharge: -20 to 60°C
Storage temperature: -20 to 55°C

Why to choose Optimum LiFePo4 battery:

Main material: adopts Lithium-ion battery of Lithium phosphate as positive electrode material
Real safety battery

Structure:

Innered BMS, protects battery against over-charge and discharge
Short-circuit, having balancing function and temperature protection
Performance (compared with lead-acid battery):

Weight to power ratio:

LiFePO4 battery: 120-130Wh/kg
SLA battery:32-37Wh/kg
Notes: 4:1

Dimension to power ratio:

LiFePO4 battery: 210Wh/L
SLA battery: 70Wh/L
Notes: 1:3

Cycle life time:

LiFePO4 battery: 2000 times
SLA battery: 400 times

Notes: 5:1

High rate charge/discharge performance

LiFePO4 battery: >96%

SLA battery: 60-70%

Notes: 1.6:1

Charging performance

LiFePO4 battery: 1h

SLA battery: 4h

Notes: 1:4

Packing: aluminium alloy, SLA case, epoxy boards +PVC, PVC and iron case

Standard capacity (0.2C): 30AH

Rated voltage: 48V

Standard charge/discharge current: 6A/30A, 0.2C/1C

Maximum continuous discharge current: 75A, 2.5C

Peak discharge current: 150A, 5C

Battery dimensions: customized

Weight (approximately including case): as light as possible

Model: IFR 32650

Case material: steel for single cells

Maximum charge voltage: 58.4V

Cut-off voltage: 40V

Charge: 0 to 45°C

Discharge: -20 to 60°C

Storage temperature: -20 to 55°C

Main material: adopts Lithium-ion battery of Lithium phosphate as positive electrode material

Real safety battery

Innered BMS, protects battery against over-charge and discharge

Short-circuit, having balancing function and temperature protection

Performance (compared with lead-acid battery):

LiFePO4 battery: 120-130Wh/kg

SLA battery:32-37Wh/kg

Notes: 4:1

LiFePO4 battery: 210Wh/L

SLA battery: 70Wh/L

Notes: 1:3

LiFePO4 battery: 2000 times

SLA battery: 400 times
