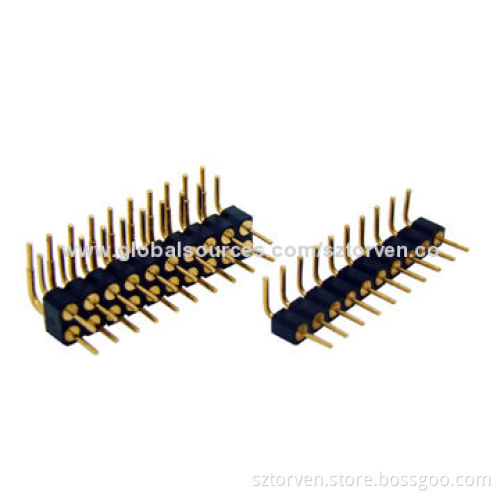

Pin Headers, 2.54mm Pitch, Machined Pin, Right Angle, Single/Dual-row, 2-80-pin
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
- Materials:
- Pin: brass, machined CuZn38Pb2
- Tin plated: 2µm/80µ-inch Ni, 5µm/200µ-inch Sn
- Gold plated: 2µm/80µ-inch Ni, full gold
- Insulator (black): glass filled thermoplastic polyester UL94V-0
- Current rating: 3A/contact maximum
- Contact resistance: ≤4MΩ/contact
- Insulation resistance: ≥1,000MΩ at 100V
- Operating voltage: 60V AC/DC
- Gold plated operating temperature range: -55 to +125°C
- Tin plated operating temperature range: -40 to +105°C
- Pin: brass, machined CuZn38Pb2
- Tin plated: 2µm/80µ-inch Ni, 5µm/200µ-inch Sn
- Gold plated: 2µm/80µ-inch Ni, full gold
- Insulator (black): glass filled thermoplastic polyester UL94V-0
-
