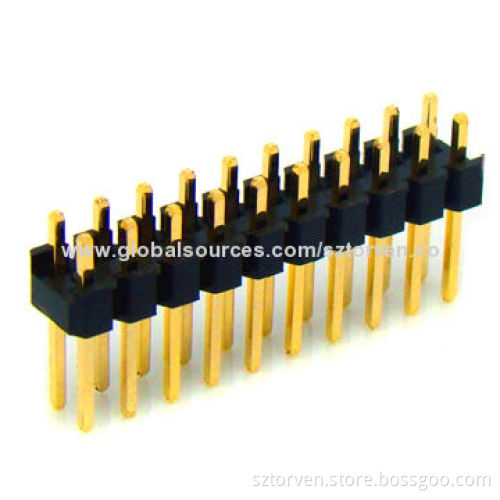

Pin Header, 2.54mm, Dual-row, 6 to 80 Pins, Straight DIP Type Profile, 2.54mm Height
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
- Current rating: 3Amps/contact (maximum)
- Contact resistance: ≤20mΩ/contact
- Insulation resistance: ≥1,000MΩ at V = 100V
- Voltage rating: 550V AC/minute
- Mechanical lifespan cycle: 200 minutes
- Operating temperature:
- Gold-plated: -55 to +105°C
- Tin-plated: -40 to +105°C
- Gold-plated: -55 to +105°C
- Tin-plated: -40 to +105°C
