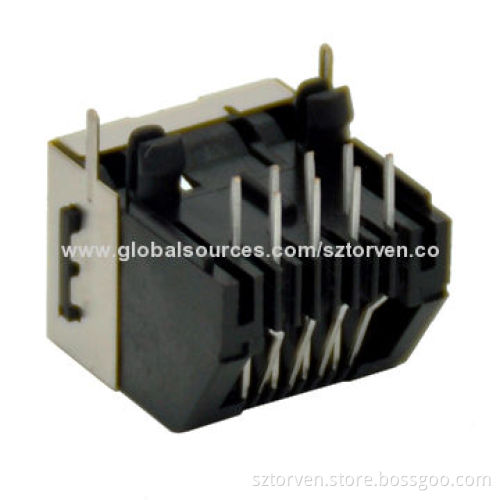

1 x 1 Side-entry Half-shield PCB Jack, Available in 4P2C-8P8C, 1.5A Rating Current
  • 1 x 1 Side-entry Half-shield PCB Jack, Available in 4P2C-8P8C, 1.5A Rating Current
  • 1 x 1 Side-entry Half-shield PCB Jack, Available in 4P2C-8P8C, 1.5A Rating Current
1 x 1 Side-entry Half-shield PCB Jack, Available in 4P2C-8P8C, 1.5A Rating Current
1 x 1 Side-entry Half-shield PCB Jack, Available in 4P2C-8P8C, 1.5A Rating Current

1 x 1 Side-entry Half-shield PCB Jack, Available in 4P2C-8P8C, 1.5A Rating Current

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Housing material: glass filled polyester UL 94V-0 PBT/nylon
  • Housing color: black or others
  • Contact material: phosphor bronze T = 0.35mm
  • Plating: gold plating over nickel
  • Gold plating thickness: 1.5/3/6/15/30/50µ-inch
  • Shielded: 0.23 thickness brass with nickel plating
  • Specifications:
    • Electrical:
      • Voltage rating: 125V AC RMS
      • Rating current: 1.5A
      • Contact resistance: 30 milliohms (maximum)
      • Insulator resistance: 500M ohms (minimum) at 500V DC
      • Dielectric withstanding resistance: 1,000V AC RMS 50Hz 1 minute
    • Mechanical:
      • Durability: 750 cycles (minimum)
      • PCB retention pre-solder: 1lb (minimum)
    • Environmental:
      • Storage: -40-+80℃
      • Operating: -40-+80℃
  • Electrical:
    • Voltage rating: 125V AC RMS
    • Rating current: 1.5A
    • Contact resistance: 30 milliohms (maximum)
    • Insulator resistance: 500M ohms (minimum) at 500V DC
    • Dielectric withstanding resistance: 1,000V AC RMS 50Hz 1 minute
  • Mechanical:
    • Durability: 750 cycles (minimum)
    • PCB retention pre-solder: 1lb (minimum)
  • Environmental:
    • Storage: -40-+80℃
    • Operating: -40-+80℃
  • Voltage rating: 125V AC RMS
  • Rating current: 1.5A
  • Contact resistance: 30 milliohms (maximum)
  • Insulator resistance: 500M ohms (minimum) at 500V DC
  • Dielectric withstanding resistance: 1,000V AC RMS 50Hz 1 minute
  • Durability: 750 cycles (minimum)
  • PCB retention pre-solder: 1lb (minimum)
  • Storage: -40-+80℃
  • Operating: -40-+80℃
