7-inch CTP/Industrial TFT LCD/LVDS Display, 800 RGB x 480 Dots Resolution

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Application: Industry Instruments, medical instrument

Driver board is available

Resolution: 800 RGB x 480 dots

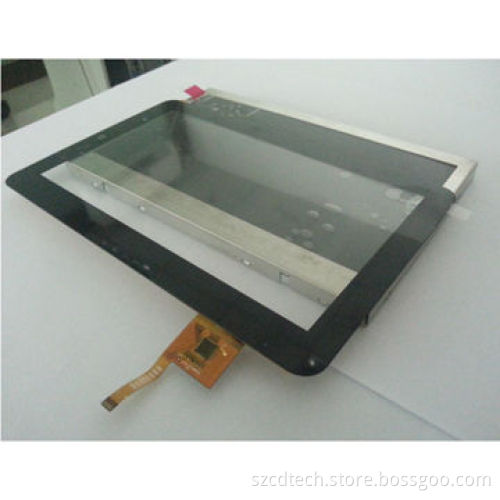

7.0-inch TFT LCD with capacitive touch panel

Size: 7.0-inch

Resolution: 800 x 480 pixels (horizontal/vertical)

Interface: 1 channel LVDS

Connect type: connector

Color depth: 16.7M

Technology type: a-Si

Display specification pixel pitch: 0.1926 x 0.1790mm

Pixel configuration: RGB vertical stripe

Display mode: normally white

Driver: IC

Surface treatment: 3 hours

Viewing direction: 12 o'clock

LCM (W x H x D): 170 x 111.0 x 9.75mm

Active area: 154.08 x 86.9mm

With/without TSP: with CTP

Weight (g): TBD

LED numbers: TBD
