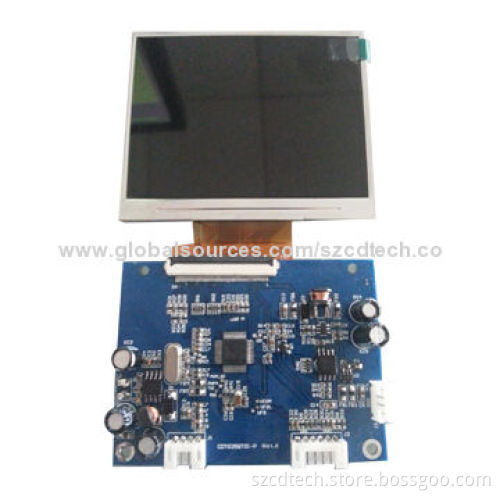

3.5-inch Transflective TFT LCD Module with 480*640P Resolution, All Viewing Directions
  • 3.5-inch Transflective TFT LCD Module with 480*640P Resolution, All Viewing Directions
  • 3.5-inch Transflective TFT LCD Module with 480*640P Resolution, All Viewing Directions
3.5-inch Transflective TFT LCD Module with 480*640P Resolution, All Viewing Directions
3.5-inch Transflective TFT LCD Module with 480*640P Resolution, All Viewing Directions

3.5-inch Transflective TFT LCD Module with 480*640P Resolution, All Viewing Directions

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Size: 3.5 inches
  • Resolution (H x V): 480 x 640P
  • Interface: 18-bit RGB
  • Connect type: connector
  • Color depth: 262K
  • Technology type: a-Si
  • Display specifications:
  • Pixel pitch: 0.111 x 0.111mm
  • Pixel configuration: RGB vertical stripe
  • Display mode: normally black
  • Driver IC: HX8363-A
  • Surface treatment: HC
  • Viewing direction: all
  • LCM (W x H x D): 64*85*2.9mm
  • Active area (H x V): 53.28 x 71.04mm
  • With/without TSP: without TSP
  • LED numbers: 8 LED
  • Operating temperature: -20-70°C
  • Storage temperature: -30-80°C
  • Luminance: 220 nits
