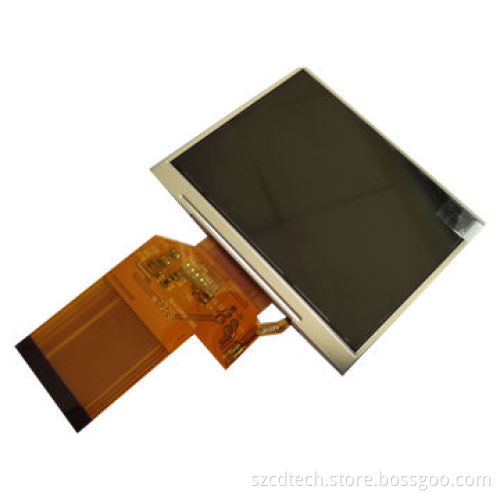

3.5" TFT LCD Module with 480(Horizontal)*640 (Vertical) Resolution, RGB/MCU Interface
  • 3.5" TFT LCD Module with 480(Horizontal)*640 (Vertical) Resolution, RGB/MCU Interface
  • 3.5" TFT LCD Module with 480(Horizontal)*640 (Vertical) Resolution, RGB/MCU Interface
3.5" TFT LCD Module with 480(Horizontal)*640 (Vertical) Resolution, RGB/MCU Interface
3.5" TFT LCD Module with 480(Horizontal)*640 (Vertical) Resolution, RGB/MCU Interface

3.5" TFT LCD Module with 480(Horizontal)*640 (Vertical) Resolution, RGB/MCU Interface

Payment Type:
T/T, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union
Product Description
Product Description
  • Size: 3.5 inches
  • Resolution: 320 (horizontal)*240 (Vertical)
  • Interface: RGB/MCU
  • Connect type: Connector
  • Technology type: a-Si
  • Display Spec. Pixel pitch (mm): 0.111 x 0.111
  • Pixel configuration: R.G. B. vertical stripe
  • Display mode: Normally white
  • Driver IC: HX8363-A
  • Surface treatment: HC
  • Viewing direction: 9 O’clock
  • LCM (W x H x D) (mm): 64(H)*85(V)*2.9(T)
  • Active area(mm): 53.28(H) x 71.04(V)
  • With/without TSP: Without TSP
  • LED numbers: 8 LEDs
  • Operating temperatures: -20℃-70℃
  • Storage temperatures: -30℃-80℃
  • Luminance: 600nits
