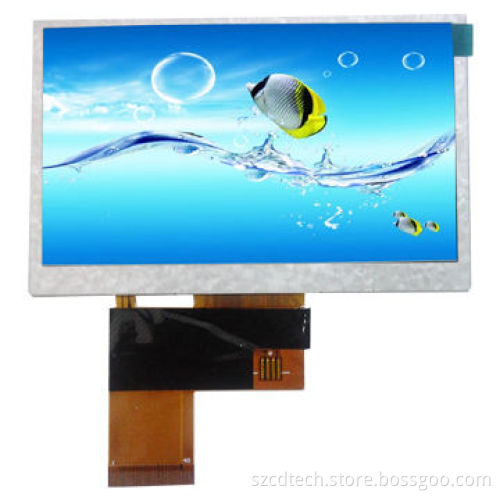

4.3" TFT LCD module with 480 (horizontal)* 272 (vertical) pixel resolution, RGB-24 bit interface
  • 4.3" TFT LCD module with 480 (horizontal)* 272 (vertical) pixel resolution, RGB-24 bit interface
  • 4.3" TFT LCD module with 480 (horizontal)* 272 (vertical) pixel resolution, RGB-24 bit interface
4.3" TFT LCD module with 480 (horizontal)* 272 (vertical) pixel resolution, RGB-24 bit interface
4.3" TFT LCD module with 480 (horizontal)* 272 (vertical) pixel resolution, RGB-24 bit interface

4.3" TFT LCD module with 480 (horizontal)* 272 (vertical) pixel resolution, RGB-24 bit interface

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Size: 4.3 inches
  • Resolution: 480 (horizontal) * 272 (vertical)
  • Interface: RGB-24bit
  • Connect type: Connector
  • Color depth: 16.7M
  • Technology type: a-Si
  • Display spec. pixel pitch (mm): 0.198 x 0.198
  • Pixel configuration: R.G. B. vertical stripe
  • Display mode: Normally white
  • Driver IC: HX8257A/NV3047
  • Surface treatment: 3H
  • Viewing direction: 6 O’clock
  • LCM (W x H x D) (mm): 105.5*67.2*2.9
  • Active area (mm): 95.04 x 53.856
  • With/without TSP: Without TSP
  • LED numbers: 10 LEDs
  • Operating temperatures: -20-70℃
  • Storage temperatures: -30-80℃
  • Luminance: 300nits
