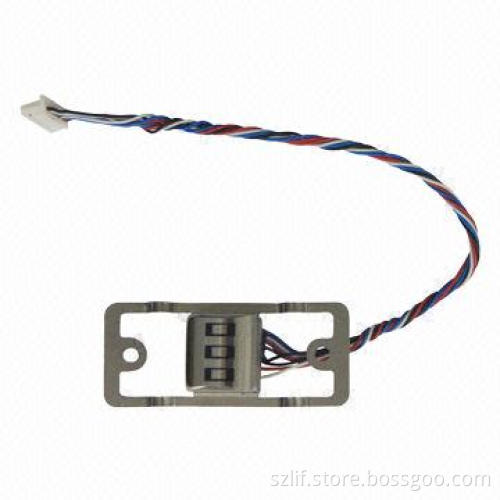

Magnetic Stripe Card Reader Module, 3 Tracks, Decoding and Encryption are All Done in Magnetic Head
  • Magnetic Stripe Card Reader Module, 3 Tracks, Decoding and Encryption are All Done in Magnetic Head
Magnetic Stripe Card Reader Module, 3 Tracks, Decoding and Encryption are All Done in Magnetic Head

Magnetic Stripe Card Reader Module, 3 Tracks, Decoding and Encryption are All Done in Magnetic Head

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Product:
    • Uses Magtek chipset
    • This chipset gives stronger read capability and goodanti-interference, as well as good in reading more differentstandard information
    • Careful design to seal all the circuit within the magnetic headin order to avoid data lost
    • Serial bus interface
    • Supports read in tract 1, 2 and 3
    • Widely used in Bank terminals, POS terminals, multimediasystem, access system and more
    • Can be made to order
  • Features:
    • Uses TDEA for encryption
    • Magnetic head conceal all circuits
    • Decoding, encryption are all done in the magnetic head to avoidoutside interference and avoid date stolen
    • Complied to PCI standard
    • High-speed SPI interface with maximum bus transfer rate100kbps
    • Able to set other interface such as UART, 12C and otherspecified interfaces
    • Magnetic head reading standard: Support ISO, IBM, and AAMVAstandard
    • Only equipment serial number for ID and double size deskkey
    • Using TDEA technology to encrypt all date in 3 tracts DeltaASIC before data transfer to ensure the data is stolen whiletransmitting
    • SPI compatible to connect 2 to 5 serial ports
    • Supports 3 tracks reading:
      1. 210bpi with maximum 76 characters
      2. 210bpi with maximum 104 characters or 75bpi with maximum 37characters
      3. 210bpi with maximum 104 characters
    • Able to read HI-co, Lo-co card from 300 to 4,000oe
    • Magnetic head lifespan: >6,000,000 swipes
    • Swipe speed: 10 to 140cm/second, supports bi-directionalswipes
  • Technology specifications:
    • Interface: SPI
    • Working voltage: 3.3V DC ±10%
    • Stand by current: 4.5mA
    • Working current: 12mA
    • Record method: F2F
    • Storage temperatures: -40 to 70°C
    • Working temperatures: -20 to 55°C
    • Working humidity range: 10 to 90% RH (no frost)
    • Dimensions (L x W x H): 38 x 16 x 6.6mm
  • Uses Magtek chipset
  • This chipset gives stronger read capability and goodanti-interference, as well as good in reading more differentstandard information
  • Careful design to seal all the circuit within the magnetic headin order to avoid data lost
  • Serial bus interface
  • Supports read in tract 1, 2 and 3
  • Widely used in Bank terminals, POS terminals, multimediasystem, access system and more
  • Can be made to order
  • Uses TDEA for encryption
  • Magnetic head conceal all circuits
  • Decoding, encryption are all done in the magnetic head to avoidoutside interference and avoid date stolen
  • Complied to PCI standard
  • High-speed SPI interface with maximum bus transfer rate100kbps
  • Able to set other interface such as UART, 12C and otherspecified interfaces
  • Magnetic head reading standard: Support ISO, IBM, and AAMVAstandard
  • Only equipment serial number for ID and double size deskkey
  • Using TDEA technology to encrypt all date in 3 tracts DeltaASIC before data transfer to ensure the data is stolen whiletransmitting
  • SPI compatible to connect 2 to 5 serial ports
  • Supports 3 tracks reading:
    1. 210bpi with maximum 76 characters
    2. 210bpi with maximum 104 characters or 75bpi with maximum 37characters
    3. 210bpi with maximum 104 characters
  • Able to read HI-co, Lo-co card from 300 to 4,000oe
  • Magnetic head lifespan: >6,000,000 swipes
  • Swipe speed: 10 to 140cm/second, supports bi-directionalswipes
  • Interface: SPI
  • Working voltage: 3.3V DC ±10%
  • Stand by current: 4.5mA
  • Working current: 12mA
  • Record method: F2F
  • Storage temperatures: -40 to 70°C
  • Working temperatures: -20 to 55°C
  • Working humidity range: 10 to 90% RH (no frost)
  • Dimensions (L x W x H): 38 x 16 x 6.6mm
