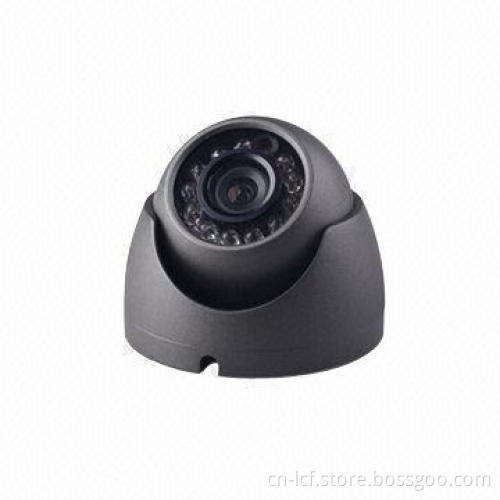

Mini Metal IR Dome Camera, 1/3-inch Sony, 420TVL, 650TVL

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union or PayPal

Product Description

1/3" Sony, 420TVL

1/3" CMOS, 600TVL

1/3" Sony, 650TVL

The following details is for 1/3" Sony 420TVL:

1/3" Sony

DSP: CXD3142

Imaging device: 1/3" ICX633BK/ICX632BK

Total pixels: 537(H) x 597(V)

Effective pixels: 500 (H) x 582(V)

Scanning system: 2:1 interlace

Synchronization: internal

Horizontal resolution: 420TV lines

Video output: CVBS, 1.0Vp-p, 75© composite

S/N signal: 48dB (AGC off)

Minimum illumination: 0.01 lux, IR/on: 0 lux

Iris adjustment: auto

ESC: auto/manual (1/50(60)-1/120,000sec)

BLC: auto

Day/night selection: auto

Gain control: auto

White balance: AWB/AWC (1,700-11,000°K)

Motion detection: no

IR: 12pcs

IR distance: 0-15m

Lens: 3.6/6mm

Input voltage: DC 8-18V

Power consumption: maximum 1.5W

Operating temperature/humidity: -10-50°C/30-80%RH

Storage temperature/humidity: -20-60°C/20-90%RH

Gross weight: 200g

Net weight: 230g

Dimensions: Ø67x49mm
