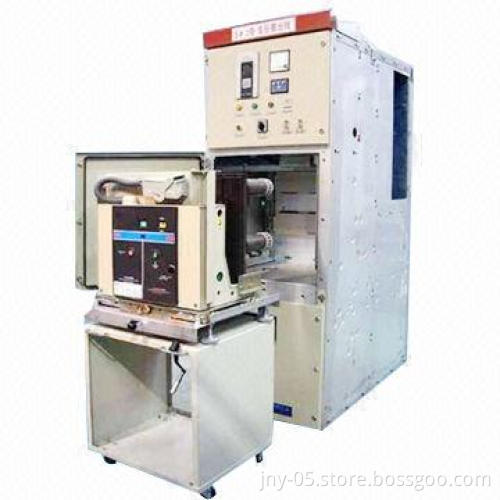

12/13.8/17.5/24kV vacuum switchgear, single busbar section system

12/13.8/17.5/24kV vacuum switchgear, single busbar section system

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Suitable for 3-phase 12/13.8/17.5/24kV AC at 50/60Hz

Single busbar section system

Used for accepting and distributing electricity power,implement system control, protection, supervision andmonitoring

Complies with IEC298 and IEC62271-200:2003 standards

Ambient temperature: +40 to -40°C

Altitude: less than 2,000m

Relative humidity: daily average less than 95% and monthly lessthan 90%

Hock of earthquake: less than 8 magnitude

Metal-clad and partition completely, effectively pre- ventfaults spreading

Low voltage section is completely separated from the highvoltage sections

Enclosure protection degree is IP4X, protect against electricshock and ingress of solid foreign bodies

Simple but effective interlocking prevents miss operating

Installation and maintenance is convenient, space is providedfor multiple cable connections

With drawable part of same design are mutually interchangeable,change of VCB is very simple

Rated short-time withstand current and rated peak withstandcurrent of current transformers are relate to rated transformationratio, affirm when ordering

Enforced cooling is necessary when the current is over andincluding 3150A of VCB
