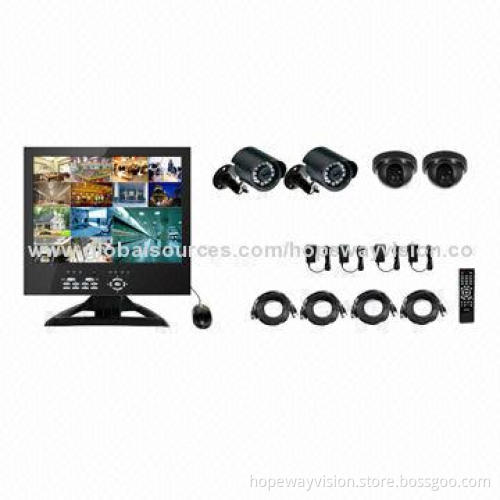

Household 8CH DVR Kit with LCD Screen

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

For small business and home appliance

8 high-resolution cameras

24-hour visual coverage

Incredible quality

Impressive performance and excellent price

Specifications:

Video system: NTSC/PAL (auto-detection)
Video compression: H.264
Video input: BNC*8 (composite signal of 1.0Vp-p, 75Ω)
Video output (BNC): BNC*1 (composite signal 1.0Vp-p, 75Ω )
Video output (VGA): built-in VGA interface for LCD monitor (1,280*1,024, 1,024*768, 800*600)
Video recording frame rate:
- NTSC: 30fps/CH
- PAL: 25fps/CH
Video recording frame rate (max):
- NTSC: 120fps
- PAL: 100fps
Video recording resolutions:
- D1: 720*480 (NTSC) 30fps, 720*576 (PAL) 25fps
- Half D1: 720*240 (NTSC) 60fps, 720*288 (PAL) 50fps
- CIF: 352*240 (NTSC) 120fps, 352*288 (PAL) 100fps
Audio input/output: 4CH (RCA)/1CH (RCA)
Operating mode: live display, record, playback, backup, network
Recording modes: manual, time, motion, alarm, remote
Alarm input/output: 4CH input, 1CH output
Motion detection sensitivity: four adjustable parameters for accurate detection
HDD storage: 1 SATA HDD, 2,000GB supported
USB flash drive backup: supported (2pcs USB 2.0 interface)
Network interface: 1pc RJ45 10M/100M Ethernet interface
Network protocols: TCP/IP, UDP, HTTP, NTP, DHCP, DDNS (dynamic IP)
Network function: IE remote monitor, control, setup, playback
IR remote control: supported
Weight (without HDD): ≤3kg
Multilingual OSD: supported
