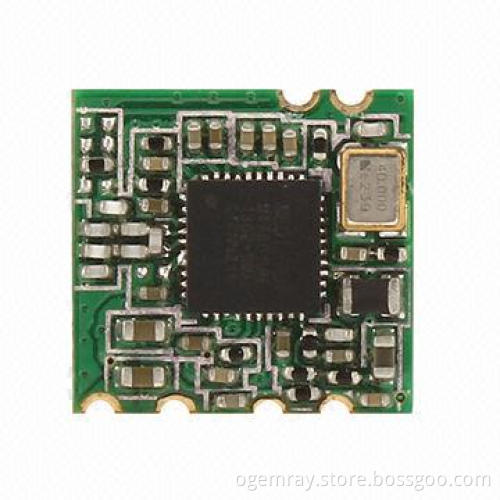

150Mbps Mini WiFi Network Card Module with MT7601 Chip-set

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Introduction:

GWF-7M01 is a tiny WLAN PCB module with USB2.0 interface and RFoutput, it supports IEEE

802.11b/g/n standards

Module operates in 2.4GHz ISM frequency band with low powerconsumption

Applies a highly integrated MAC/BBP and RF single chip MT7601UNwith 150Mbps phy rate supporting

Small form factor and low cost design provide excellentperformance for the wireless connectivity

Ideal for confine space application for consumer products

Features:

20MHz/40MHz bandwidth supported: 1T1R mode

802.11b: 1, 2, 5.5 and 11Mbps, 802.11g: 6, 9, 12, 24, 36, 48and 54Mbps

802.11n: Supports phy rate up to 150Mbps

Security: supports WEP 64/128, WPA, WPA2, TKIP and AES

Applications:

Portable smart devices: Mobiles, tablets, mini-PCs andmore

Others: TV, Media players, set top box, IP cam, camcorder andmore
