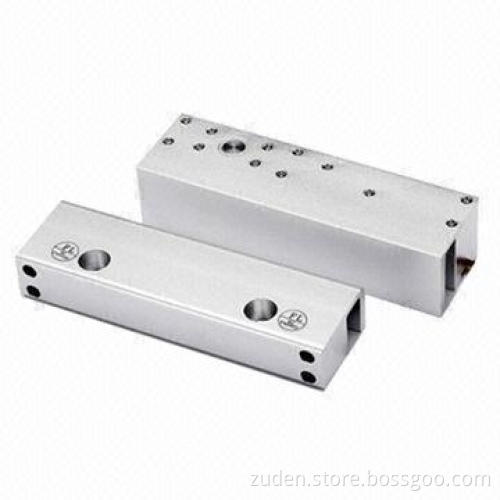

Electric Bolt Lock for Full Frameless Glass Door

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Adapts high-quality materials, stable and reliable

Specially designed for frameless glass doors (without up and down frame), used by matching a bracket and is convenient to match with automatic door

Time delay setting can keep bolt open/close status in a certain period, so when it connects to access control, it can make some employee enter or exit door simultaneously

Also can check position of lock and door

Specially used for full frameless glass door (without up and down frame)

Safety mode: power-on to lock, power-off to open (fail safe)

Adjustable delay: 0, 2.5, 5 seconds (optional)

With NO/NC output (connect NC, fail safe, connect NO, fail secure)

Signal output: door state and lock state

Input voltage: 12V DC

Current:

Start: 0.9A

Standby: 0.25A

Cylinder diameter: 12.5 ±1.0mm

Lock pin length: 15.0 ±1.0mm

Dimensions: 170x49x43mm (bold) and 170x49x30mm (magnet)

Bolt diameter: 12.5mm

Bolt length: 15.1mm

Packaging size: 190x90x55mm

Packaging weight: 1.2kg
