LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
  • LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
  • LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
  • LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
  • LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
  • LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
  • LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
  • LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
  • LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development
LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development

LV3000 USB Handheld Scanners, Easy for Integration, for Second Time Development

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description

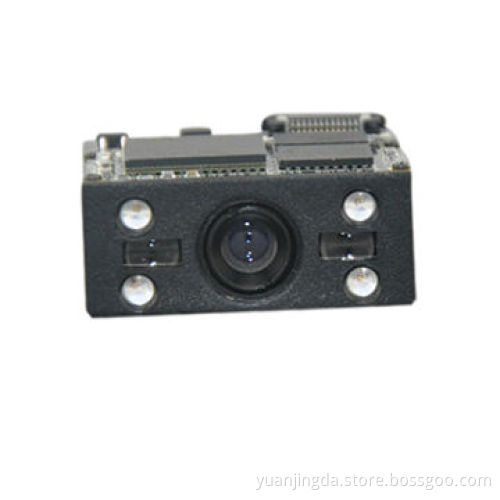

  • Embedded 2D barcode scan engine
  • Designed for OEM applications, this high performance CMOS engine can easily be integrated into various solutions such as kiosks, ticketing machines and PDA's and various more
  • Features:
    • Easy for integration
    • Compact (smaller than paperclip) and easy to integrate design, image capture device with decoder on one board
    • Small form factor enables easy to integration into various solutions
  • Advanced technology:
    • Technology includes optical, CMOS, digitizer, decoder, image processing and embedded systems
    • Supports all global standard 1D barcode symbolizes reading performance reaches and exceeds global standards
    • By using accessories provided, user can ideally setup scanner to its user environment
  • Specifications:
    • Interface: TTL232
    • Image sensor: 752*480p CMOS
    • Depth of scan field: 40-235mm
    • Illumination: 0-100,000lux
    • Light source: LED (618-63 nm)
    • Voltage: 3.3 ±0.3V DC
    • Maximum current: 450mA
    • Working current: 300mA
    • Idle: 60mA
    • Operating temperature: -5 to 45°C
    • Storage temperature: -40 to 60°C
    • Weight: 10g
    • Dimensions: (L)28*(W)24*(H)14mm
  • Easy for integration
  • Compact (smaller than paperclip) and easy to integrate design, image capture device with decoder on one board
  • Small form factor enables easy to integration into various solutions
  • Technology includes optical, CMOS, digitizer, decoder, image processing and embedded systems
  • Supports all global standard 1D barcode symbolizes reading performance reaches and exceeds global standards
  • By using accessories provided, user can ideally setup scanner to its user environment
  • Interface: TTL232
  • Image sensor: 752*480p CMOS
  • Depth of scan field: 40-235mm
  • Illumination: 0-100,000lux
  • Light source: LED (618-63 nm)
  • Voltage: 3.3 ±0.3V DC
  • Maximum current: 450mA
  • Working current: 300mA
  • Idle: 60mA
  • Operating temperature: -5 to 45°C
  • Storage temperature: -40 to 60°C
  • Weight: 10g
  • Dimensions: (L)28*(W)24*(H)14mm
