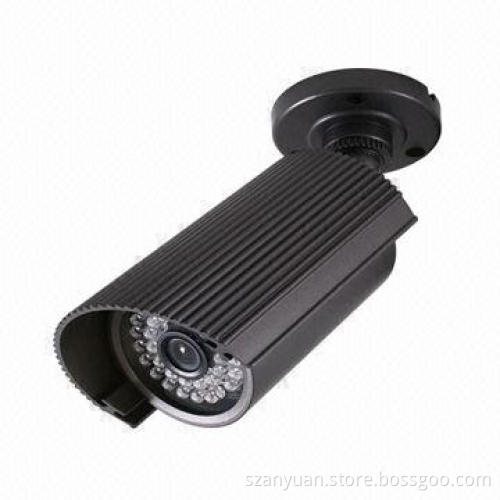

1/3-inch CCD CCTV Water-resistant Camera with 48dB S/N Ratio and 40m IR Distance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Image sensor: 1/3-inch Sony low lux CCD

Resolution: 540TVL

Aluminum casing, strong and beautiful

Cable built-in bracket design, convenient for installation

Varifocal lens from outer change, convenient to use

Night vision: 5mm x 48 pieces, 40m IR range

Pixels:

PAL: 795 x 596

NTSC: 811 x 508

Scanning system: PAL/NTSC

Level synchronization frequency:

PAL: 15.625kHz

NTSC: 15.734kHz

Clock frequency:

PAL: 19.3125

NTSC: 19.0699

Scanning system: 2:1 de-interlacing

Minimum illumination: 0.01 lux (0 lux when infrared lightopen)

Synchronization system: synchronization

S/N ratio: 48dB

Electronic shutter:

PAL: 1/50 to 1/100,000 seconds

NTSC: 1/60 to 1/100,000 seconds

Gamma correction: 0.45

Video output: 1Vp-p, 75Ω

AGC: automatic

Power supply: 12V DC (±10%)

Current: 500mA

Carton size: 590 x 360 x 200mm

Dimensions: 96 x 96 x 63mm

Weight: 0.11kg

Operating temperature: -10 to 45°C
