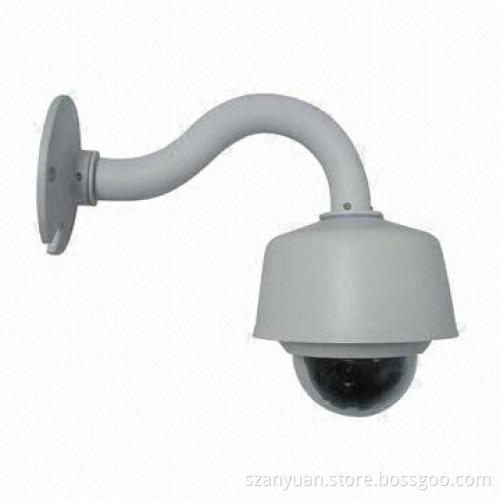

4-inch Mini High Speed Dome Camera with 10x Optical, 570TVL Color and Original Samsung Digital Zoom

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

TV systems: NTSC and PAL

CCD: 1/4-inch interline transfer

Resolutions (H x V):

NTSC: 811 x 508 pixels, 410K
PAL: 795 x 596 pixels, 470K

Effective pixels (H x V):

NTSC: 768 x 494 pixels, 380K
PAL: 752 x 582 pixels, 440K

Horizontal resolutions:

Color: 500TVL
B/W: 570TVL

S/N ratio: 50dB (AGC off)

10x optical and Samsung digital zoom

Focal length: F1.8, f equal to 3.8 to 38mm

Illumination: (color) 0.7, 0.02 lux (B/W) and 50 IRE

Day and night: automatic (ICR)

Focus: automatic, manual and semi-automatic

Iris: automatic and manual

Shutter speed: 128 to 1/120,000 seconds

AGC: normal, high and off

White balance: automatic manual (red or blue gainadjustable)

BLC: low, middle, high and off

Flicker-free (selectable)

SSNR: low, middle, high and off

Range:

Pan: 360° (endless)
Tilt: (auto-flip) 180° and (normal) 95°

Pan/tilt speed:

Preset: 360°/second
Manual: 0.05 to 360°/second (proportional to zoom)
Swing: 1 to 180°/second

With 127 presets (label and camera image setting)

Pan/tilt:

With 4 patterns and 1,200 commands (about 5 minutes)
Swing: 8
With 8 groups (20 action entities per group)
Other functions: auto flip, parking and power-up action
Communication: RS485
Protocols: Pelco-D and Pelco-P (selectable)
Privacy zone: 4
Alarm input: 4
OSD: menu and PTZ information

Rated power:

MV-x10T-D: 12V DC/0.8A
MV-x10T-A: 24V AC/0.4A

Net weight: 1.13kg

NTSC: 811 x 508 pixels, 410K

PAL: 795 x 596 pixels, 470K

NTSC: 768 x 494 pixels, 380K

PAL: 752 x 582 pixels, 440K

Color: 500TVL

B/W: 570TVL

Pan: 360° (endless)

Tilt: (auto-flip) 180° and (normal) 95°

Preset: 360°/second

Manual: 0.05 to 360°/second (proportional to zoom)

Swing: 1 to 180°/second

With 4 patterns and 1,200 commands (about 5 minutes)

Swing: 8

With 8 groups (20 action entities per group)

Other functions: auto flip, parking and power-up action

Communication: RS485

Protocols: Pelco-D and Pelco-P (selectable)

Privacy zone: 4

Alarm input: 4

OSD: menu and PTZ information

MV-x10T-D: 12V DC/0.8A

MV-x10T-A: 24V AC/0.4A
