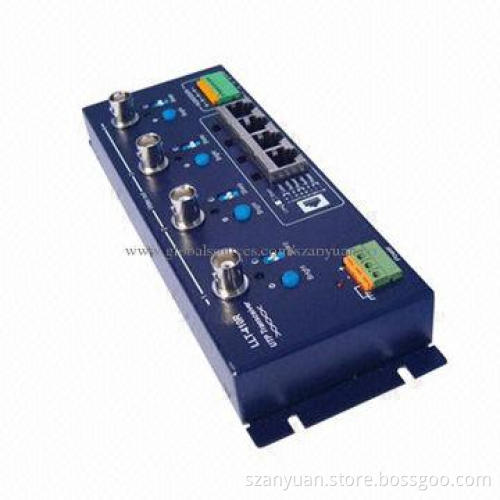

RJ45 UTP Port Video Balun with 100Ω Data Connector and 12V DC Voltage
  • RJ45 UTP Port Video Balun with 100Ω Data Connector and 12V DC Voltage
RJ45 UTP Port Video Balun with 100Ω Data Connector and 12V DC Voltage

RJ45 UTP Port Video Balun with 100Ω Data Connector and 12V DC Voltage

Get Latest Price
Payment Type:
T/T in Advanced
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advanced
Product Description
Product Description
  • Features:
    • Capable of receiving and transmitting videos signal over UTP cable
    • With four active channels
    • Mode: common and differential
    • Control: brightness and sharpness
  • Specifications:
    • Frequency response: DC to 6MHz
    • Rejection: 15kHz to 6MHz and 60dB type
    • Audio and data: not supported
    • Voltage: 12V DC
    • Impedance: coaxial, male BNC 75Ω UTP (screw less) terminal block or UTP RJ45
    • Data connector: 100Ω
    • Wire type: one unshielded twisted pair 24 x 16AWG (0.5 to 31mm) per video signal
    • DC loop resistance: 52Ω to 1,000ft (18Ω to 100m)
    • Surge suppression: 6,000V, 1.2 x 5Ωs
    • UTP port: RJ45 and terminal block
    • Dimensions: 200 x 70 x 38mm
    • Environment temperature: -10 to 50°C
    • Humidity range: 0 to 95%
    • Weight: 430g
  • Capable of receiving and transmitting videos signal over UTP cable
  • With four active channels
  • Mode: common and differential
  • Control: brightness and sharpness
  • Frequency response: DC to 6MHz
  • Rejection: 15kHz to 6MHz and 60dB type
  • Audio and data: not supported
  • Voltage: 12V DC
  • Impedance: coaxial, male BNC 75Ω UTP (screw less) terminal block or UTP RJ45
  • Data connector: 100Ω
  • Wire type: one unshielded twisted pair 24 x 16AWG (0.5 to 31mm) per video signal
  • DC loop resistance: 52Ω to 1,000ft (18Ω to 100m)
  • Surge suppression: 6,000V, 1.2 x 5Ωs
  • UTP port: RJ45 and terminal block
  • Dimensions: 200 x 70 x 38mm
  • Environment temperature: -10 to 50°C
  • Humidity range: 0 to 95%
  • Weight: 430g
