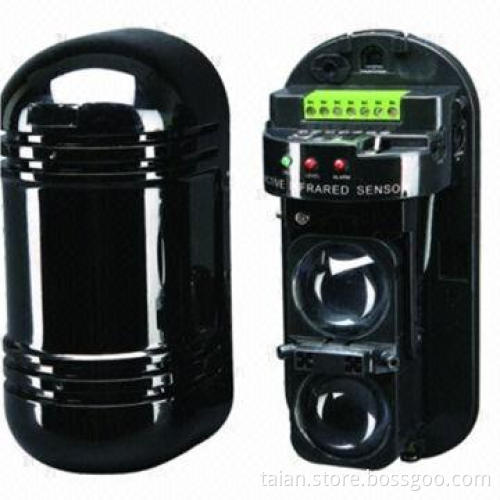

Perimeter 2-IR Beams Detector

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

ABT-20/30/40/60/80/100/150
Anti strong light up to 50000LUX, built-in auto adjustment filtering system, avoid the interference strong light and car spotlight
Unique optical design: optical beams could penetrate through multilayer glass, strong resistance to external interference
Integrative structure for waterproof, dust-proof and moth-proof
Adopted the large caliber non-sphere dual focus coaxial optic lens, and fresnel lens optical
Strong function of RFI/EMI
Using the multilevel LED, solve the trouble of interference
Detecting distance: depending on different models

Models: ABT-20, ABT-30, ABT-40, ABT-60, ABT-80, ABT-100, ABT-150

Outdoor distance: 60, 90, 120, 180, 240, 300, 360m

Way of detection: detects when all 2 beams are cut

Detecting speed: 50 to 700m/sec

Alarm output: relay port output

Port capacity: AC DC 30V, 0.5A maximum

Power supply: DC 12-18V

Operating temperature: - 25 to 55°C

Tamper output: DC 30V, 0.5A maximum

Horizontal angle: 180 ±90 °

Vertical angle: 20 ±10 °

ABT-20/30/40/60/80/100/150
