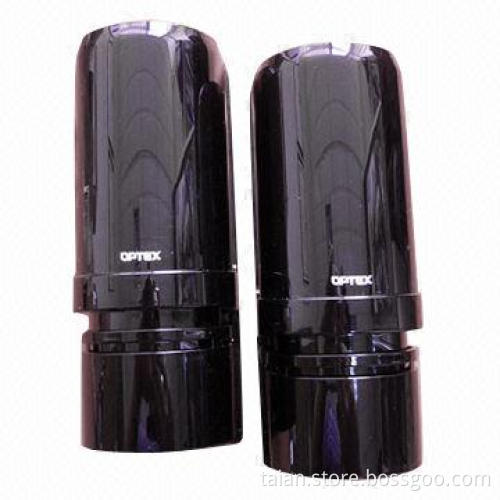

Outdoor Perimeter Infrared Dual Beams Sensor, 10.5 to 30V DC Power Supply

Get Latest Price

Payment Type:: T/T, Western Union, PayPal, MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal, MoneyGram

Product Description

Description:

AX-100PLUS/AX-200PLUS/AX-260PLUS/AX-330PLUS series of activeinfrared dual beams are designed to provide reliable detection atexternal distances up to 100m
AX beams include automatic gain control (AGC) to helpcompensate for loss of signal caused by fog or heavy rain
Circuitry ensures that, even with 99% of signal lost, beamswill continue to function
To further ensure reliability, beams also feature an adjustablebeam interruption timer that can be set to filter out alarms fromsmall or fast moving objects
Add to this frost resistant cover design and lightingprotection and have beam, suitable for installations in harshestenvironments

Features:

Lightning and surge protection
Rain, dust and insect protection
Frost and dew protection
High grade aspherical lens
Twin synchronized pulsed beam design for greater stability
99.5% beam blocking stability
AGC circuit
Adjustable beam interruption time
3-step LED indicator (ALPHA versions)

Available models:

AX-100/200/260/330PLUS standard model
AX-100PLUS 60m Indoor 30m Outdoor
AX-200PLUS 120m Indoor 60m Outdoor
AX-260PLUS 160m Indoor 80m Outdoor
AX-330PLUS 200m Indoor 100m Outdoor

Specifications:

Interruption period: selectable between 50, 100, 200, 350 and500ms
Power supply: 10.5 to 30V DC
Detection angle: 10°
Current consumption (transmitter + receiver): 50mA(maximum)
Alarm period: 2 seconds (±1) nominal
Alarm output: form C relay 28V DC/0.2A (maximum)
Tamper switch: NC opens when cover removed (receiver only)
Operating temperature: -25 to +55°C
Environmental humidity : 95% (maximum)
Alignment angle: ± 90° (horizontal) and±10° (vertical)
Mounting: wall and pole
Weight (transmitter+receiver): 1250g
Dimensions: (H) 196 x (W) 78 x (D) 83mm
Protection grade: IP54 (weatherproof)
