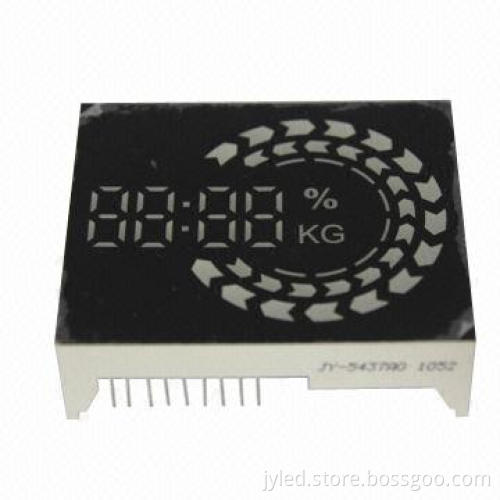

7 Segment LED Display for Microwave Oven, 45~85% RH Storage Humidity

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, PayPal, Western Union or MoneyGram

Product Description

Features:

Specifications:

Lens colors: optional black, gray
PCB polarity: common anode/cathode
Absolute maximum rating: (Ta = 25°C)
Power dissipation: 50mW
Peak forward current: 100mA
Reverse voltage: 5V
Operating temperature: -25~+85°C
Storage temperature: -30~+85°C
Storage humidity: 45~85% RH
Storage and soldering condition
Store with care
Storing the units in bad condition will cause the reflectorsheet and decrease it's adhesive power
Storage the products under the condition: temperature (25±10°C) and humidity (65 ±20°C CRH) ourrecommendation
The soldering temperature is 260 ±5°C and solderingtime should be less than 3 second and soldering iron power shouldbe less than 30W
The soldering point should be farther than 1.6mm from body

Our advantages:

Your inquiry related to our products will be replied in 24hours
Experienced staffs to answer your inquiries in fluentEnglish
Providing OEM and ODM service
Protection of your sales area, ideas of design and all yourprivate information
No matter big order or small order, we will serve you with bestquality and service
Advanced equipment and good materials: ASM machine, excellentchips and epoxy resin
Lifespan: 80,000-100,000 hours

Dimensions: 55.0 x 45.0mm

Color: yellow-green

Application: dish washer

Luminous evenly distributed on each segment

With SGS, RoHS marks

Various sizes and colors upon your option

Low-power consumption

Easy to assemble on printed circuit board

Lens colors: optional black, gray

PCB polarity: common anode/cathode

Absolute maximum rating: (Ta = 25°C)

Power dissipation: 50mW
