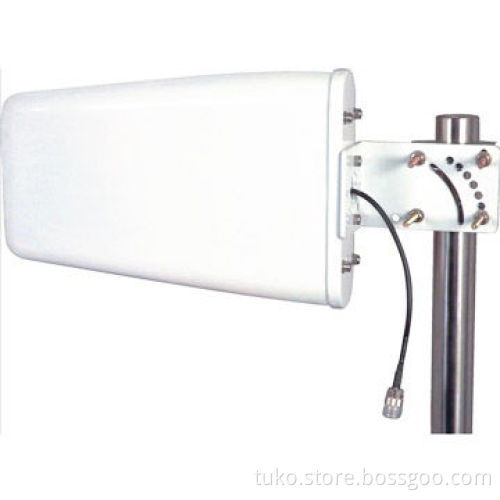

800-2500MHz 4G panel antenna with 11dBi gain

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Key Specifications/Special Features:Electrical Specifications

Mechanical Specifications

Model :TKLDP-V-002

Freq. range 806-960 MHz, 1710-2500 MHz

Gain :11DBI

Horizontal Beamwidth :70° to 90°

Vertical Beamwidth :85° to 110°

F/B ratio >20 dB

V.S.W.R <= 1.5

Nominal Impedance: 50 ohm

Polarization: Vertical

Max Power: 100 W

Connector: N Female

Dimension: 290x210x65 mm

Lightning protection: DC grounded

Weight: 1.5kg

Temperature range: -40 to 70 deg. C

Rated Wind Velocity: 60m/s

Mounting Mast Diameter: Φ40-50mm
