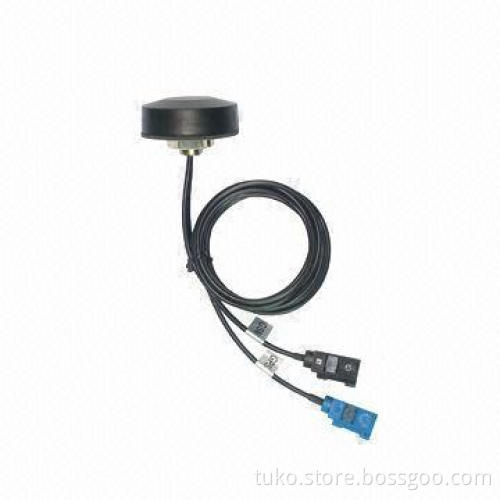

Car GSM GPS combo antenna
- Payment Type:
- L/C, T/T, Western Union, MoneyGram or PayPal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C, T/T, Western Union, MoneyGram or PayPal |
|---|
Product Description
Product Description
-
Electrical:
- Frequency range: 1,575.42/824-960/1,710-2,170MHz
- Bandwidth: 10,136/460MHz
- Gain: 28, 2dBi
- VSWR: ≤1.5, ≤2.0
- Voltage: 3-5V DC
- Noise figure: ≤1.5dBi
- Nominal impedance: 50Ω
- Polarization (RHCP): vertical
- Maximum power: 50W
- Cable length: 3m
- Connector: Fakra or customized
- Antenna dimensions: 46 x 15mm
- Weight: 160g
- Mounting: screw
- Temperature: -40 to 60°C
- Humidity: 5-95% RH
- Frequency range: 1,575.42/824-960/1,710-2,170MHz
- Bandwidth: 10,136/460MHz
- Gain: 28, 2dBi
- VSWR: ≤1.5, ≤2.0
- Voltage: 3-5V DC
- Noise figure: ≤1.5dBi
- Nominal impedance: 50Ω
- Polarization (RHCP): vertical
- Maximum power: 50W
