Motorized card reader module with motorized card reader and pinpad for payment machineNew

Motorized card reader module with motorized card reader and pinpad for payment machineNew

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

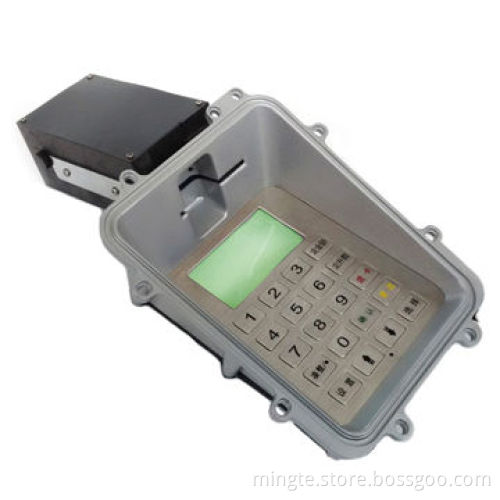

This module is the combination of motorized card reader MT318-4.0 and explosion-proof pin-pad, Support contact IC card, RF card and SIM card read and write, support read magnetic stripe card track 1/2/3

Can insert and eject card automatically, use several sensors to check product status and identify card positions, power failure module can be customized

Functions:

Read and write of magnetic cards that comply with 7811 standard
Read and write of RF cards that comply with 14443-A and 14443-B standards
Read and write of IC cards that comply with EMV standard
Authentication of up to four SIM cards
Communication interface: RS-232
Protection against insertion of other articles
Power failure protection (optional)
Query for card status and determination of card location, alien card and card reader failure

Applications:

Self-service terminals
Electronic wallets
Automatic vending machines
Multimedia query machines

Technical features:

Industrial design, supporting outdoor application
Integrated ASIC decoder and magnetic head design, anti-interference, large scope of application and good operating effect
Dedicated smart card processing chip, highly reliable
Redundant power unit design (large torque of motor), ensuring stable and long-term operating
Built-in precise transmission mechanism, free from mechanical damage caused by collision and dust

Read and write of magnetic cards that comply with 7811 standard

Read and write of RF cards that comply with 14443-A and 14443-B standards

Read and write of IC cards that comply with EMV standard

Authentication of up to four SIM cards

Communication interface: RS-232

Protection against insertion of other articles

Power failure protection (optional)

Query for card status and determination of card location, alien card and card reader failure

Self-service terminals

Electronic wallets

Automatic vending machines

Multimedia query machines
