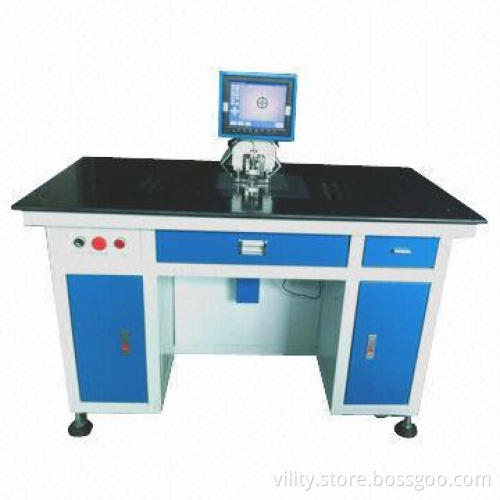

New Guide Hole Punching Machine for Nameplate

New Guide Hole Punching Machine for Nameplate

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Technical parameters:

Precision: ±0.015mm
Speed: 0.5 seconds/hole
Maximum momentum: 2000N (VT015, VT008) and 6000N (VT015, VT008)
Thickness: 0.01 to 3mm (depend on material)
Punching diameter: 1 to 5mm (OEM welcome)
Pressure requirements: 0.4 to 0.8MPa
Power requirements: 220 ±15V AC at 50Hz
Light source: infrared transmission, reflection infrared
Weight: 198 ±2kg
Size: 1250x770x770+260mm

Features:

Applies to various thickness of nameplate, PCB, FPC IML/IMD, PVC/PET/PC panel, thin film switch, membrane panel, results are neither burrs nor enlargement surrounding processed holes
Interactive-communication operational system with mouse operating tool (Windows XP operating system) enables procedure of process to become easier, faster and more efficient
Large and wide operational stage enables object to be moved and rotated easily
High speed: super high punching speed enables process of hole-recognizing and target-punching to be within one second
Precise-transmission and micro-step motor driver is used to enhance accuracy and stability of process
Up light or down light enables every materials of targeting holes to be identified easily and to enhance accuracy of recognition in targeting shape
No foot paddle is needed, all operation be finished by touch-screen, sensitive enough to enhance speed of operation
Users can choose various tooling size to punch various diameter and thickness material
Sampling plans can be saved and then can be used directly next time
Computer systems can supports software upgrade for lifetime

Precision: ±0.015mm

Speed: 0.5 seconds/hole

Maximum momentum: 2000N (VT015, VT008) and 6000N (VT015, VT008)

Thickness: 0.01 to 3mm (depend on material)

Punching diameter: 1 to 5mm (OEM welcome)

Pressure requirements: 0.4 to 0.8MPa

Power requirements: 220 ±15V AC at 50Hz

Light source: infrared transmission, reflection infrared

Weight: 198 ±2kg

Size: 1250x770x770+260mm

Applies to various thickness of nameplate, PCB, FPC IML/IMD, PVC/PET/PC panel, thin film switch, membrane panel, results are neither burrs nor enlargement surrounding processed holes

Interactive-communication operational system with mouse operating tool (Windows XP operating system) enables procedure of process to become easier, faster and more efficient

Large and wide operational stage enables object to be moved and rotated easily

High speed: super high punching speed enables process of hole-recognizing and target-punching to be within one second

Precise-transmission and micro-step motor driver is used to enhance accuracy and stability of process

Up light or down light enables every materials of targeting holes to be identified easily and to enhance accuracy of recognition in targeting shape

No foot paddle is needed, all operation be finished by touch-screen, sensitive enough to enhance speed of operation

Users can choose various tooling size to punch various diameter and thickness material

Sampling plans can be saved and then can be used directly next time

Computer systems can supports software upgrade for lifetime
