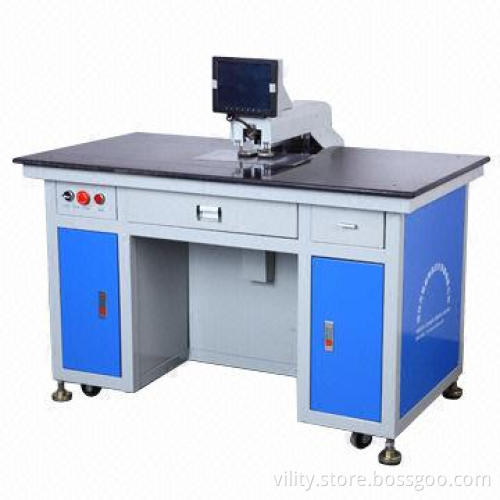

FPC automatic hole punching machine, 1.0 to 4.0mm punching diameter

FPC automatic hole punching machine, 1.0 to 4.0mm punching diameter

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

With pneumatic drive

Processing objects:

Target materials: FPC, PCB and films
Maximum work dimensions: (W) 400 x (D) 300mm
Minimum work dimensions: (W) 180 x (D) 200mm
Thickness of work piece: decide by material and punching hole diameter

Processing ability:

Punching accuracy: ±0.02mm (by Deyi model)
Punching diameter: 1.0 to 4.0mm
Punching speed: 0.38 seconds/hole (By Deyi model)

Punch:

Driving mode: pneumatic drive
Installation: upper die fixed, lower die movable and rubber returned material

Operating table:

Clamping: 4-point clamps + XY tension control mechanism
Retainer plate move mode: pneumatic drive up and down
Tension holding support: adjust by workpiece size X-axial met and handle lock
Operating system: Microsoft Windows XP
Display: 17-inch TFT LCD (4/3)
Working procedure: intellectual property control software of Deyi
Operating data: based on physical study for manual operating

Image processing:

Camera: 600-line third of an inch of CCD
Vision range: 7 x 5.4mm
Processing methods: grayscale model measurement
Lighting system: high brightness LED colorful transmission and reflection

Operating environment:

Temperature: 20 to 30°C
Humidity: 40 to 60% (not dewing)

Dimensions: (W) 105 x (D) 115 x (H) 135cm

Weight: about 600kg

Power supply: 220V AC ±10% 2kVA

Pressure: 0.5 to 0.7MPa

Target materials: FPC, PCB and films

Maximum work dimensions: (W) 400 x (D) 300mm

Minimum work dimensions: (W) 180 x (D) 200mm

Thickness of work piece: decide by material and punching hole diameter

Punching accuracy: ±0.02mm (by Deyi model)

Punching diameter: 1.0 to 4.0mm

Punching speed: 0.38 seconds/hole (By Deyi model)

Driving mode: pneumatic drive

Installation: upper die fixed, lower die movable and rubber returned material

Clamping: 4-point clamps + XY tension control mechanism

Retainer plate move mode: pneumatic drive up and down

Tension holding support: adjust by workpiece size X-axial met and handle lock

Operating system: Microsoft Windows XP

Display: 17-inch TFT LCD (4/3)

Working procedure: intellectual property control software of Deyi

Operating data: based on physical study for manual operating

Camera: 600-line third of an inch of CCD

Vision range: 7 x 5.4mm

Processing methods: grayscale model measurement

Lighting system: high brightness LED colorful transmission and reflection

Temperature: 20 to 30°C

Humidity: 40 to 60% (not dewing)
