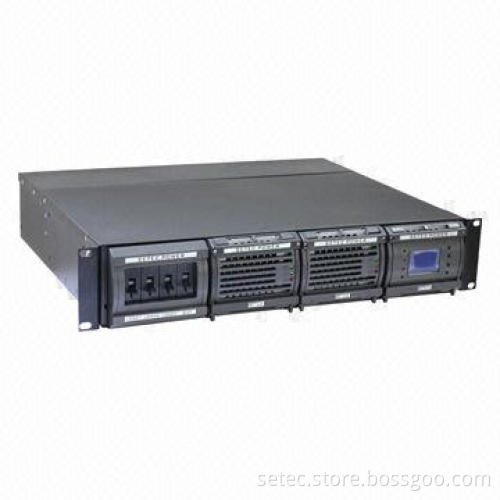

Rectifier with 50Hz Output Frequency

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

48V output voltage
High efficiency 96%
N + 1 rectifier modules
Battery charger
Compliant with CE standard
Output type: single
Output frequency: 50Hz
Total size: 19-inch 2U rack mount
Input voltage: 220V
Output power: 1500W
With 1pc 30A rectifier modules
Output current: 30A
Input: single phase 220V or three phase 380V

Application: exchange room, server room, base station, data communication

Product features:

Circuit of the rectifier modules have two parts, one is PFC adjust, other is DC/DC transformation
All technically make the wide input voltage range (85-290V)
High efficiency: rectifier modules use soft switch technology, while load rate is 10%, efficiency can be 91%, load rate is 50%, efficiency can be above 96%
With step less current limiter technology, output current is continuously adjustable
Adopted stepless temperature control speed, it can reduce power consumption and prolong the lifespan of the fan
Sharing load, equalized-current imbalance ≤3%
Optional Ethernet interface through SNMP and/or TCP/IP
Controller MCU
Digital signal collection via internal RS485 bus, RS232 interface for remote operation
2U height, lightweight, high power density

48V output voltage

High efficiency 96%

N + 1 rectifier modules

Battery charger

Compliant with CE standard

Output type: single

Output frequency: 50Hz

Total size: 19-inch 2U rack mount

Input voltage: 220V

Output power: 1500W

With 1pc 30A rectifier modules

Output current: 30A

Input: single phase 220V or three phase 380V

Circuit of the rectifier modules have two parts, one is PFC adjust, other is DC/DC transformation

All technically make the wide input voltage range (85-290V)

High efficiency: rectifier modules use soft switch technology, while load rate is 10%, efficiency can be 91%, load rate is 50%, efficiency can be above 96%

With step less current limiter technology, output current is continuously adjustable

Adopted stepless temperature control speed, it can reduce power consumption and prolong the lifespan of the fan

Sharing load, equalized-current imbalance ≤3%

Optional Ethernet interface through SNMP and/or TCP/IP

Controller MCU

Digital signal collection via internal RS485 bus, RS232 interface for remote operation

2U height, lightweight, high power density
