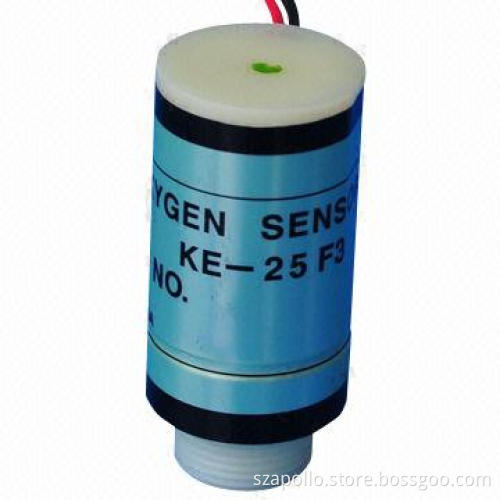

Electrochemical Gas Sensors for Oxygen

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Based on fuel cell and lead acid battery technologies (electrochemical principle)
Sensor life is very long (5 and 10 years, depending on environment)

Specifications:

Measurement range: 0 to 100% (O₂)
Accuracy:
- KE-25: ±1% FS
- KE-50: ±2% FS
Temperature: 5 to 40°C
Response time:
- KE-25: 14 ±2s
- KE-50: 60 ±5s
Initial output voltage under standard test conditions:
- KE-25: 10 to 15.5mV
- KE-50: 47 to 65mV

Features:

Applications:

Based on fuel cell and lead acid battery technologies (electrochemical principle)

Sensor life is very long (5 and 10 years, depending on environment)

Measurement range: 0 to 100% (O₂)

Accuracy:

Temperature: 5 to 40°C

Response time:

Initial output voltage under standard test conditions:

KE-25: ±1% FS

KE-50: ±2% FS

KE-25: 14 ±2s

KE-50: 60 ±5s

KE-25: 10 to 15.5mV

KE-50: 47 to 65mV

Long life:

Virtually no influence from CO2, CO, H2S, NOx and H2

Stable output signal

Operates in normal ambient temperatures

No external power supply required for sensor operation

No warm-up time is required

KE-25: 5 years

KE-50: 10 years in ambient air

Medical: anesthetic instruments, respirators and oxygen-enricher

Biotechnology: oxygen incubators

Food industry: refrigeration and greenhouses

Safety: air conditioners, oxygen detectors and fire detectors
