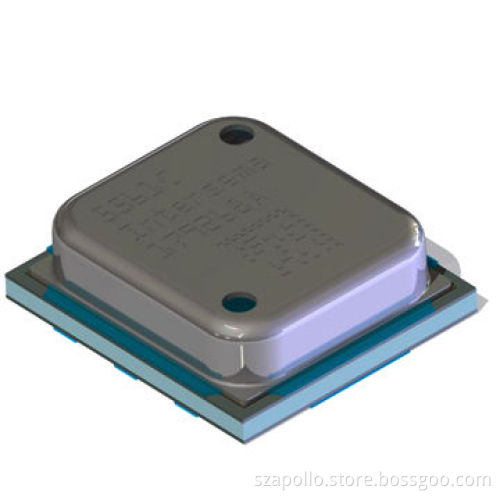

Micro Altimeter, including a precision piezo-resistive pressure sensor and an ADC Interface IC

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Description:

The MS5561C is a SMD-hybrid device including a precision piezo-resistive pressure sensor and an ADC-Interface IC. It uses a three-wire serial interface for communication. The module dimensions of 4.75 mm x 4.25 mm and a height of only 1.6 mm allows for up-to-date SMD design. It provides a 16 bit data word from a pressure and temperature dependent voltage. The MS5561 is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a micro-controller.

Features:

Pressure resolution 0.1mBar
Operating temperature -40 to +85°C
Supply voltage 2.2V to 3.6V
Low supply current, typ. 4µA
Standby current < 0.1µA
Calibrated temperature and pressure sensor for 2nd order compensation

ESD protected, HBM 4kV

The MS5561C is a SMD-hybrid device including a precision piezo-resistive pressure sensor and an ADC-Interface IC. It uses a three-wire serial interface for communication. The module dimensions of 4.75 mm x 4.25 mm and a height of only 1.6 mm allows for up-to-date SMD design. It provides a 16 bit data word from a pressure and temperature dependent voltage. The MS5561 is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a micro-controller.

Pressure resolution 0.1mBar

Operating temperature -40 to +85°C

Supply voltage 2.2V to 3.6V

Low supply current, typ. 4µA

Standby current < 0.1µA

Calibrated temperature and pressure sensor for 2nd order compensation
