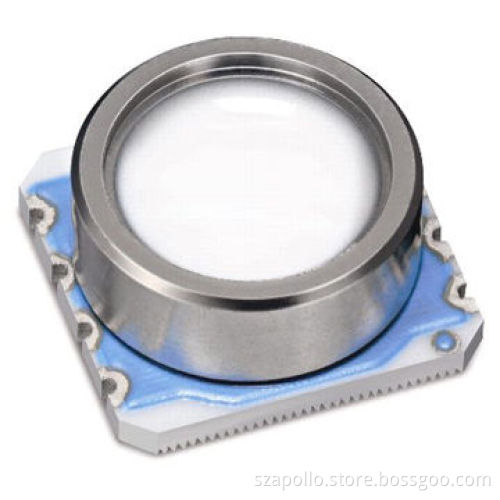

MS5541-30C Miniature 30bar Pressure Sensor Module

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Integrated pressure sensor
Pressure range: 0-30bar (435 PSI)
Resolution: 3.0mbar
Small size: 6.2x6.4mm
16-bit ADC
6 coefficients for a software compensation stored on-chip
3-wire serial interface
1 system clock line: 32.768kHz
Temperature range: -40-+85°C
Low voltage: 2.2 to 3.6V
Low power (standby current of 0.1uA)
Pb-free and RoHS-compliant
No external components required

Applications:

Mobile water depth measurement systems
Diving computers and divers watches

Description:

The MS5541-30C is the miniature version of MS5535-30C pressure sensor module
It contains precision piezoresistive pressure sensor and an improved version of the 16-bit micropower sensor interface IC known from the MS5535-30C
Compared to the previous version the ESD sensitivity has been improved to 4kV on all pins
In addition to this the MS5541-30C is from its outer dimensions compatible to the MS54xx series of pressure sensors
It uses an anti-magnetic polished stainless steel ring for sealing with O-ring
The sensor provides 16-bit pressure and temperature data via 3-wire serial interface that can be easily interfaced with 4-bit low power micro-controllers
64-bit of factory programmed PROM provides calibration data for a highly accurate pressure and temperature calculation
Fully software compatible to the MS5535C-30 and previous versions of MS5541

Integrated pressure sensor

Pressure range: 0-30bar (435 PSI)

Resolution: 3.0mbar

Small size: 6.2x6.4mm

16-bit ADC

6 coefficients for a software compensation stored on-chip

3-wire serial interface

1 system clock line: 32.768kHz

Temperature range: -40-+85°C

Low voltage: 2.2 to 3.6V

Low power (standby current of 0.1uA)

Pb-free and RoHS-compliant

No external components required

Mobile water depth measurement systems

Diving computers and divers watches

The MS5541-30C is the miniature version of MS5535-30C pressure sensor module

It contains precision piezoresistive pressure sensor and an improved version of the 16-bit micropower sensor interface IC known from the MS5535-30C

Compared to the previous version the ESD sensitivity has been improved to 4kV on all pins

In addition to this the MS5541-30C is from its outer dimensions compatible to the MS54xx series of pressure sensors

It uses an anti-magnetic polished stainless steel ring for sealing with O-ring

The sensor provides 16-bit pressure and temperature data via 3-wire serial interface that can be easily interfaced with 4-bit low power micro-controllers

64-bit of factory programmed PROM provides calibration data for a highly accurate pressure and temperature calculation

Fully software compatible to the MS5535C-30 and previous versions of MS5541
