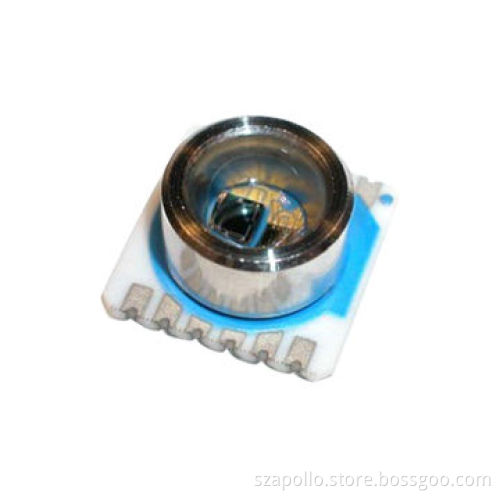

Altimeter Module, RoHS Directive-compliant
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T |
|---|
Product Description
Product Description
- Integrated pressure sensor (9x9mm)
- Pressure range: 10 to 1100mbar
- 16-bit ADC
- 6 coefficients for software compensation stored on-chip
- 3-wire serial interface
- 1 system clock line: 32.768kHz
- Temperature range: -40 to +125°C
- Low voltage: 2.2 to 3.6V
- Low power (standby current of 0.1μA)
- Low operating current: ≤5μA
- Pb-free
- RoHS Directive-compliant
- Soldering profile: 240 to 250°C
- Mobile altimeter/barometer systems
- Weather control systems
- Adventure or multi-mode watches
- GPS receivers
- SMD-hybrid device including piezoresistive pressure sensor andADC-interface IC
- Provides 16-bit data word from pressure and temperaturedependent voltage
- Additionally module contains 6 readable coefficients for highlyaccurate software calibration of sensor
- Low power, low voltage device with automatic power down(on/off) switching
- 3-wire interface is used for all communications withmicrocontroller
- Fully software compatible to previous versions (MS5534A andMS5534B)
- Compared to previous versions ESD sensitivity level has beenimproved to 4kV on all pins
