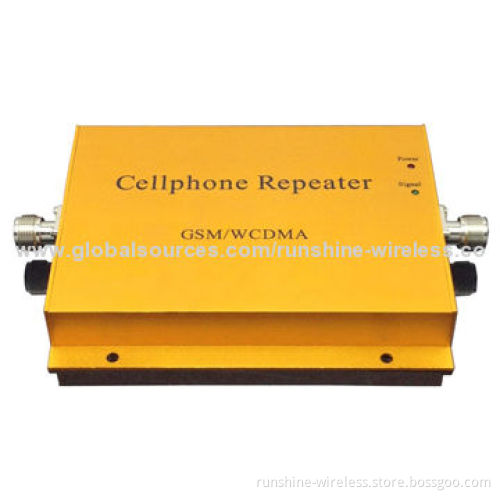

GSM 3G/WCDMA 900/2,100MHz Dual-band Mobile Signal Repeater Amplifier Booster with 800sqm Coverage
  • GSM 3G/WCDMA 900/2,100MHz Dual-band Mobile Signal Repeater Amplifier Booster with 800sqm Coverage
GSM 3G/WCDMA 900/2,100MHz Dual-band Mobile Signal Repeater Amplifier Booster with 800sqm Coverage

GSM 3G/WCDMA 900/2,100MHz Dual-band Mobile Signal Repeater Amplifier Booster with 800sqm Coverage

Get Latest Price
Payment Type:
T/T in Advance, Western Union, PayPal, MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, Western Union, PayPal, MoneyGram
Product Description
Product Description
  • Functions:
    • Making your mobile phone signal stronger
    • Making you keep in touch with others smoothly in everywhere
    • Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal
  • Features:
    • ALC ensure output level stable and adjustable continuously
    • Low-power consumption and avoid to interference to BTS
    • LED indicate and judge to signal level of uplink and downlink
    • AGC and MAC functions
    • Customized band selective
    • With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
    • Compact design, to easy and convenient installation
  • Specifications:
    • Parameter data: uplink and downlink
    • Frequency range:
      • 890-915/1,920-1,980, 930-960/2,110-2,170MHz
    • Output power: 13 ±1dBm, 17 ±1dBm
    • Gain: 58 ±2/65 ±2dB
    • Bandwidth: 5m
    • AGC: 20db
    • Ripple in band: ≤5dB
    • Intermodulation products:
      • 9kHz-1GHz ≤ -36dBm
      • 1-12.75GHz ≤ -30dBm
    • Noise figure at maximum gain: ≤6dB
    • VSWR: ≤2
    • MTBF: >50,000 hours
    • Power supply range: 110-220V AC, +5V DC/2A
    • Impedance: 50 Ohms
  • Mechanical specifications:
    • RF connector: TNC-female
    • Cooling: heat-sink convection cooling
    • Dimensions (D x W xH ): 155*130*22mm
    • Weight: 1kg
    • Installation type: wall installation
    • Environment conditions: IP40
    • Humidity: <90% RH
    • Operating temperature: -10 - 55℃
  • Applications:
    • Designed to solve the mobile phone weak signal
    • Underground parking areas, underground markets
    • Department stores, homes, offices, commercial centers
    • Stadiums, schools, hospitals, hotels, subway stations and more
  • Making your mobile phone signal stronger
  • Making you keep in touch with others smoothly in everywhere
  • Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal
  • ALC ensure output level stable and adjustable continuously
  • Low-power consumption and avoid to interference to BTS
  • LED indicate and judge to signal level of uplink and downlink
  • AGC and MAC functions
  • Customized band selective
  • With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
  • Compact design, to easy and convenient installation
  • Parameter data: uplink and downlink
  • Frequency range:
    • 890-915/1,920-1,980, 930-960/2,110-2,170MHz
  • Output power: 13 ±1dBm, 17 ±1dBm
  • Gain: 58 ±2/65 ±2dB
  • Bandwidth: 5m
  • AGC: 20db
  • Ripple in band: ≤5dB
  • Intermodulation products:
    • 9kHz-1GHz ≤ -36dBm
    • 1-12.75GHz ≤ -30dBm
  • Noise figure at maximum gain: ≤6dB
  • VSWR: ≤2
  • MTBF: >50,000 hours
  • Power supply range: 110-220V AC, +5V DC/2A
  • Impedance: 50 Ohms
  • 890-915/1,920-1,980, 930-960/2,110-2,170MHz
  • 9kHz-1GHz ≤ -36dBm
  • 1-12.75GHz ≤ -30dBm
  • RF connector: TNC-female
  • Cooling: heat-sink convection cooling
  • Dimensions (D x W xH ): 155*130*22mm
  • Weight: 1kg
  • Installation type: wall installation
  • Environment conditions: IP40
  • Humidity: <90% RH
  • Operating temperature: -10 - 55℃
  • Designed to solve the mobile phone weak signal
  • Underground parking areas, underground markets
  • Department stores, homes, offices, commercial centers
  • Stadiums, schools, hospitals, hotels, subway stations and more
