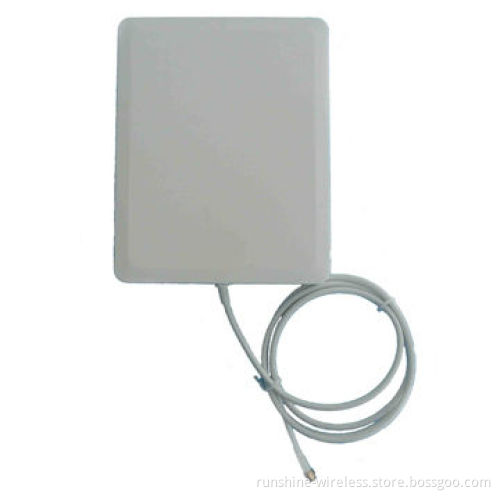

2.4GHz 17dBi Wi-Fi Panel Antenna with ISM WLAN Wireless AP/Adapter, Directional Wall Mount
  • 2.4GHz 17dBi Wi-Fi Panel Antenna with ISM WLAN Wireless AP/Adapter, Directional Wall Mount
2.4GHz 17dBi Wi-Fi Panel Antenna with ISM WLAN Wireless AP/Adapter, Directional Wall Mount

2.4GHz 17dBi Wi-Fi Panel Antenna with ISM WLAN Wireless AP/Adapter, Directional Wall Mount

Get Latest Price
Payment Type:
T/T, Western Union, PayPal, MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, PayPal, MoneyGram
Product Description
Product Description
  • Features:
    • Good appearance
    • Durable, corrosion resistance
    • Full day for working, waterproof
    • Optimized dimensions
    • High gain, lower VSWR, strong anti-interference
  • Applications:
    • 2.4GHz WLAN system
    • 2.4GHz ISM application
    • Wi-Fi Telecommunication system
    • Wireless AP, wireless adapter
  • Electric specifications:
    • Frequency range: 2400 to 2483MHz
    • Bandwidth: 83Mhz
    • Gain: 17dBi
    • Beam width:
      • H: 35°
      • V: 20°
    • Input impedance: 50Ω
    • VSWR: ≤1.5
    • Polarization: vertical
    • Maximum power: 100W
    • Lightning protection: DC ground
    • Connector model: N female
  • Mechanical specifications:
    • Antenna dimensions: 220 x 173 x 25mm
    • Antenna weight: 0.8kg
    • Radome material: ABS
    • Working temperature: -40 to 60°C
    • Rated wind velocity: 60m/s
    • Pole diameter: 50 to 75mm
  • Good appearance
  • Durable, corrosion resistance
  • Full day for working, waterproof
  • Optimized dimensions
  • High gain, lower VSWR, strong anti-interference
  • 2.4GHz WLAN system
  • 2.4GHz ISM application
  • Wi-Fi Telecommunication system
  • Wireless AP, wireless adapter
  • Frequency range: 2400 to 2483MHz
  • Bandwidth: 83Mhz
  • Gain: 17dBi
  • Beam width:
    • H: 35°
    • V: 20°
  • Input impedance: 50Ω
  • VSWR: ≤1.5
  • Polarization: vertical
  • Maximum power: 100W
  • Lightning protection: DC ground
  • Connector model: N female
  • H: 35°
  • V: 20°
  • Antenna dimensions: 220 x 173 x 25mm
  • Antenna weight: 0.8kg
  • Radome material: ABS
  • Working temperature: -40 to 60°C
  • Rated wind velocity: 60m/s
  • Pole diameter: 50 to 75mm
