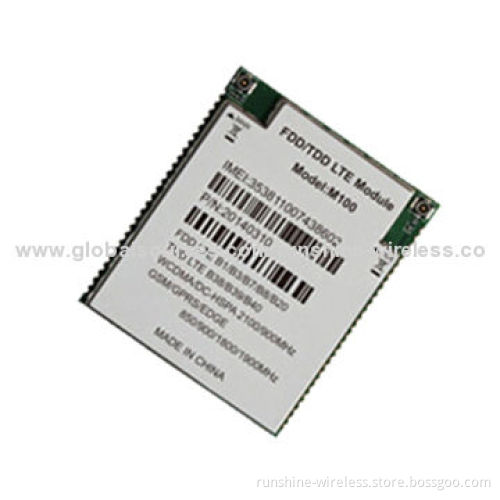

4G FDD LTE Module of Mini PCIE Wireless Card with Qualcomm Chipset

Get Latest Price

Payment Type:: TT, Western Union, PayPal, MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union, PayPal, MoneyGram

Product Description

Working temperature range: -20-55℃

Storage temperatures: -40-85℃

Humidity temperatures: 5-95%

Supply voltages: 3.3-4.2V

Speaking current 230mA @-75dbm

Max. current 1800mA @-102dbm

Average standby current < 10mA

Power off leak current < 50ua

Working frequency GSM/GPRS/EDEG: 850MHz/900MHz/1800MHz/1900MHz

WCDMA/HSDPA: 2100MHz/900MHz

FDD-LTE B1 2100

B3 1800
B7 2600
B8 900
B20 800

Frequency range

GSM850:
- Send: 824~849MHz
- Receive: 869~894MHz
EGSM900:
- Send: 880~915MHz
- Receive: 925~960MHz
DCS1800:
- Send: 1710~1785MHz
- Receive: 1805~1880MHz
PCS1900:
- Send: 1850~1910MHz
- Receive: 1930~1990MHz
WCDMA 2100:
- Send receive: 1920-1980MHz
- Receive: 2110-2170MHz
WCDMA 900:
- Send: 882.4-912.6MHz
- Receive: 927.4-957.6MHz
FDD-LTE B1:
- Send: 1920-1980MHz
- Receive: 2110-2170MHz
FDD-LTE B3:
- Send: 1710-178MHz
- Receive: 1805-1880MHz
FDD-LTE B7:
- Send: 2500-2570MHz
- Receive: 2620-2690MHz
FDD-LTE B8:
- Send: 880-915MHz
- Receive: 925-960MHz
FDD-LTE B20:
- Send: 832-862MHz
- Receive: 791-821MHz

Receive sensitivity GSM<-102dbm

WCDMA: <-106.7dbm

TD-LTE: <-94 (BW 20MHz) <-106.2(1.4MHz)

Max transmitted power GSM850/900 Class 4: 33dbm (2 W)

GSM1800/1900 Class 1: 30dbm(1 W)

WCDMA2100/900: Class 3: 23dbm

TD-LTE B38/B40: Class3: 23dbm

Data width WCDMA: download speed: 384Kbps, upload speed: 384Kbps

DC-HSPA+: download speed: 42Mbps upload speed: 5.76Mbps

FDD-LTE: download speed: 100Mbps upload speed: 50Mbps

Output interface module working status indication

USB2.0 high speed interface

UART interface (support 8 wires serial port (custom-made), 4 wires/2 wires

B3 1800

B7 2600

B8 900

B20 800

GSM850:

Send: 824~849MHz
Receive: 869~894MHz

EGSM900:

Send: 880~915MHz
Receive: 925~960MHz

DCS1800:

Send: 1710~1785MHz
Receive: 1805~1880MHz

PCS1900:

Send: 1850~1910MHz
Receive: 1930~1990MHz

WCDMA 2100:

Send receive: 1920-1980MHz
Receive: 2110-2170MHz

WCDMA 900:

Send: 882.4-912.6MHz
Receive: 927.4-957.6MHz

FDD-LTE B1:

Send: 1920-1980MHz
Receive: 2110-2170MHz

FDD-LTE B3:

Send: 1710-178MHz
Receive: 1805-1880MHz

FDD-LTE B7:

Send: 2500-2570MHz
Receive: 2620-2690MHz

FDD-LTE B8:

Send: 880-915MHz
Receive: 925-960MHz

FDD-LTE B20:

Send: 832-862MHz
Receive: 791-821MHz

Send: 824~849MHz

Receive: 869~894MHz

Send: 880~915MHz

Receive: 925~960MHz

Send: 1710~1785MHz

Receive: 1805~1880MHz

Send: 1850~1910MHz

Receive: 1930~1990MHz

Send receive: 1920-1980MHz

Receive: 2110-2170MHz

Send: 882.4-912.6MHz

Receive: 927.4-957.6MHz

Send: 1920-1980MHz

Receive: 2110-2170MHz

Send: 1710-178MHz

Receive: 1805-1880MHz

Send: 2500-2570MHz

Receive: 2620-2690MHz

Send: 880-915MHz

Receive: 925-960MHz

Send: 832-862MHz

Receive: 791-821MHz
