Product Description

GWT-IES-M12044 series:

Powerful Web management function
2 Gigabit optical ports and 4 100M optical ports effectively establish 2 100M self-healing redundant ring network
Proprietary protocol “GWT-Ring” (self-recovery time<15ms) and RSTP/STP/MSTP for network redundancy.
SNMPv3, IEEE802.1X, HTTPS and SSH to enhance network security
Web, CLI, Telnet/serial console, Windows utility, and SNMP management
Complies with standard industrial design:-40-85℃ operating temperature and redundant power input(18~36V DC)
Protection level: IP40, aluminum chassis, cooling surface design

Overview:

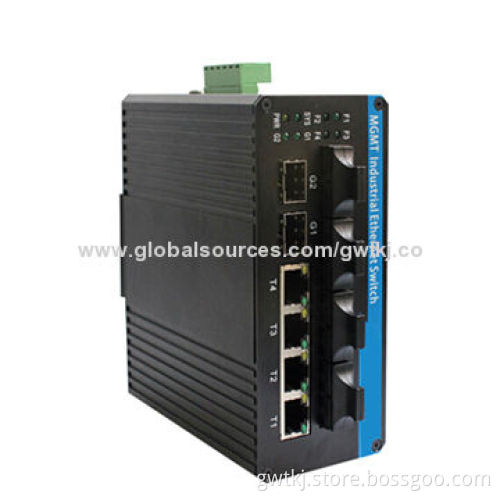

GWTIESM12044 series managed industrial Ethernet switches are equipped with 2 SFP Gigabit optical ports,4 100M optical port (SC/ST/FC/LC optional) and 4 10/100M Ethernet RJ45 ports,
which support the “GWT-Ring”redundant ring (self-recovery time<15ms), RSTP/STP/MSTP protocol to enhance the reliability of the network
The superb hardware reliability is especially suitable for industrial applications

Features:

Command line Interface (CLI) for quickly configuration major managed functions
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol to ease network planning
Port mirroring for online debugging
Ethernet/IP and Modbus/TCP protocols for device management and monitoring
Multicast and broadcast storm control
Port trunking

Powerful Web management function

2 Gigabit optical ports and 4 100M optical ports effectively establish 2 100M self-healing redundant ring network

Proprietary protocol “GWT-Ring” (self-recovery time<15ms) and RSTP/STP/MSTP for network redundancy.

SNMPv3, IEEE802.1X, HTTPS and SSH to enhance network security

Web, CLI, Telnet/serial console, Windows utility, and SNMP management

Complies with standard industrial design:-40-85℃ operating temperature and redundant power input(18~36V DC)

Protection level: IP40, aluminum chassis, cooling surface design

GWTIESM12044 series managed industrial Ethernet switches are equipped with 2 SFP Gigabit optical ports,4 100M optical port (SC/ST/FC/LC optional) and 4 10/100M Ethernet RJ45 ports,

which support the “GWT-Ring”redundant ring (self-recovery time<15ms), RSTP/STP/MSTP protocol to enhance the reliability of the network

The superb hardware reliability is especially suitable for industrial applications

Command line Interface (CLI) for quickly configuration major managed functions

IGMP snooping and GMRP for filtering multicast traffic

Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol to ease network planning

Port mirroring for online debugging

Ethernet/IP and Modbus/TCP protocols for device management and monitoring

Multicast and broadcast storm control

Port trunking
