Product Description

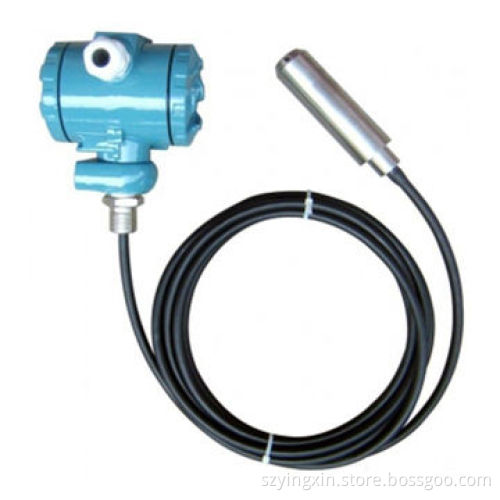

The smart Immersion Hydrostatic Liquid Level Transducer is used to measure the liquid level applications. It is based on the measured hydrostatic proportional to the height of the liquid with the principle, using ceramic piezoresistive effect sensing element and temperature compensation and linearity correction, then covert the hydrostatic pressure to an electrical signal output of 4-20mA DC

The sensor part can drop into the liquid and the transmitter can be fixed by flange mounted or bracket, easily to install and use

Features:

Stability, high precision
Directly drop into the measured medium, very easy to install and use
Solid-state structure, no moving parts, high reliability, long life from the water, the viscosity of the oil to a paste can be highly accurate measurements, not measured media bubble, deposition, electrical characteristics
Wide range of temperature compensation
Standard 4-20mA DC output for RTU, PLC and acquisition equipments
Wide range for measurements from 0.3~100m
With power reverse polarity protection and overload current limit protection

Specifications:

Measurement range: 0.3～100m, (Default 5m, according to customer requirement)
Measurement liquid: the material not caused corrosion with 316L stainless steel material (water, oil, diesel)
Precision: 0.2Class, 0.5Class, Deflaut:0.2Class
Display: Default is no display, optional: 0~100% indicated linearity, LCD display meters, LCD display 0~100% indicated linearity, LED display 0~100% indicated linearity
Working temperatures: -20～80
Output: 2-wire 4～20mA DC
Working power: Standard is 24V DC (12~36V DC is optional)
Non-sensitive region: ≤±1.0%FS
Cable material: Polytetrafluoroethylene (PTFE, F4)
Explosion-proof rate: Exia ⅡCT6
Load capacity: 0-600Ω
IP rate: IP68

Stability, high precision

Directly drop into the measured medium, very easy to install and use

Solid-state structure, no moving parts, high reliability, long life from the water, the viscosity of the oil to a paste can be highly accurate measurements, not measured media bubble, deposition, electrical characteristics

Wide range of temperature compensation

Standard 4-20mA DC output for RTU, PLC and acquisition equipments

Wide range for measurements from 0.3~100m

With power reverse polarity protection and overload current limit protection

Measurement range: 0.3～100m, (Default 5m, according to customer requirement)

Measurement liquid: the material not caused corrosion with 316L stainless steel material (water, oil, diesel)

Precision: 0.2Class, 0.5Class, Deflaut:0.2Class

Display: Default is no display, optional: 0~100% indicated linearity, LCD display meters, LCD display 0~100% indicated linearity, LED display 0~100% indicated linearity

Working temperatures: -20～80

Output: 2-wire 4～20mA DC

Working power: Standard is 24V DC (12~36V DC is optional)

Non-sensitive region: ≤±1.0%FS

Cable material: Polytetrafluoroethylene (PTFE, F4)

Explosion-proof rate: Exia ⅡCT6

Load capacity: 0-600Ω

IP rate: IP68
