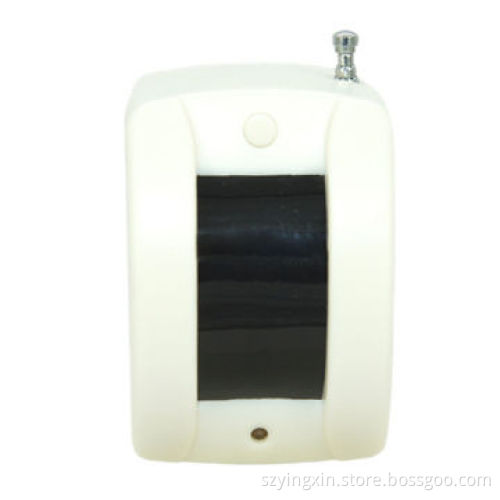

Wireless curtain infrared sensor

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Working together with other intelligent alarm devices

Working voltage: 4.5V DC (AAA batteries1.5Vx3)

Operating frequency: 315 and 433.92MHz (other frequency can be customize)

Standby current: <45uA

Working current: 14mA

Coding form: fixed code (PT2260 chip)

Learning code: (eV1527/PT2240B)

Rolling code: (HCS301)

Transmitting range: >100m

Output power: 11dBm (40mW)

Detection angle:

Horizontal: 100°
Vertical: 8°

Detection range: 8 meters

Transmitting velocity: <10Kbps

Modulation mode: yes

Working temperature: -10-+70℃

Volume: 76x59x34mm

Application field: remote controller, anti-thief alarm, remote lock, remote electric shutter doors and windows, industry controlling products etc.

With features such as compact in size, good performances, low consumption design, long standby time. Using American exclusive infrared sensor and temperature compensating technology. So the rate of false alarm is so low

Horizontal: 100°

Vertical: 8°
