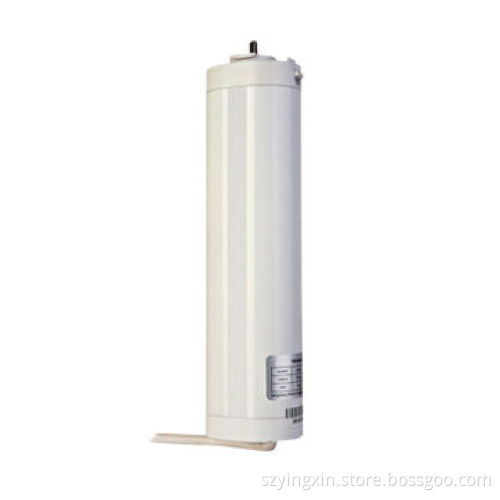

Curtain control motor

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

This product is the core part of the curtain running automatically and is the motor that control the curtain opening and closing

Main functions: manual start, pulled by hand when cut-off, electric switch

Application field: apply to straight or arc fabric curtains, controlled by strong electricity switch straightly, and most suitable for project like hotel. It will be great if using with intelligent household control platform

Nominal voltage: 220V AC, ±10%, 50Hz

Nominal power: 45W

Nominal torsion: 1.2N.m

Nominal rotational speed: 88.6r/min

Insulation grade: 1.c1.E

Protection grade: IP41

Duty: S3

Main motor: KM45A

System length: 6m maximum

Curtain speed: 5.6m/min

Volume: 258x70x55mm

Net weight: 1.25kg
